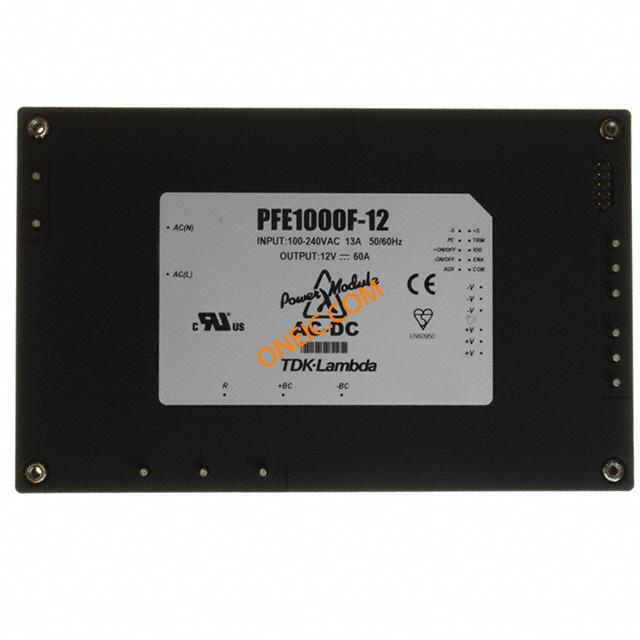

PFE1000F-12
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 60A 720W 8-Pin AC/DC CONVERTER 12V 60A 1000W Power Supply,Encapsulated,PCB,12V 720W Linear and Switching Power Supplies 720W 12V 60A AC-DC CONV, PCB MOUNT, 1 O/P, 720W, 60A, 12V PowerSupply;AC-DC;12V@60A;85-265VIn;Enclosed;PanelMnt;Telecom;PFC;PFESeries |
| Category |
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85044090 | Rad Hardened | No |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Noise | ±1% | Output | 12VDC@60A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 82(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | 720 W | Output Power | 720 W |
| Power (Watts) | 1000W | Power - Rated | 720W |
| Power - Output | 720W | Voltage Rating | 85 to 265 V |
| Line Regulation | 48mV | Load Regulation | 48mV |
| Current - Output | 60 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 720W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 13.6 A |
| Voltage - Input (Min) | 12V | Current - Output / Channel | 60 A |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Depth | 13.4mm | Width | 100mm |
| Height | 0.53 in | Length | 160mm |
| Weight | 500g | Mounting Type | Through Hole |
| Mounting Style | PCB | Package Cooled | Encapsulated |
| Length - Overall | 116.8 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 6.30" L x 3.94" W x 0.53" H (160.0mm x 100.0mm x 13.4mm) |
| Number of Positions | 8 | Shell Size - Insert | 12.7 |
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE300-1000 | DELETED | Compliant |
| Features | Parallelable | Application | Commercial |
| Applications | Commercial | Manufacturer | PFESeries |
| Configuration | Enclosed | Printed Circuit Board | 8 |
Environmental
| Operate Time | 1645413h | Operating Temperature | -40 to 100 °C |
| Maximum Temperature Limit | +85°C | Operating Temperature - Junction | -40C |
Documents & Media
Similar Parts
HAF15T
TDK-Lambda Corporation
Heat Sink Passive 1.5°C/W HEATSINK WIDTHWISE 1.5" FINS Heat Sinks Heatsk 116.8x38.1x61 For PFE Series
HAF15L
TDK-Lambda Corporation
Heat Sink Passive 1.9°C/W HEATSINK FULL BRICK 1.5" FINS Heat Sinks Heatsk 116.8x38.1x61 For PFE Series HEAT SINK

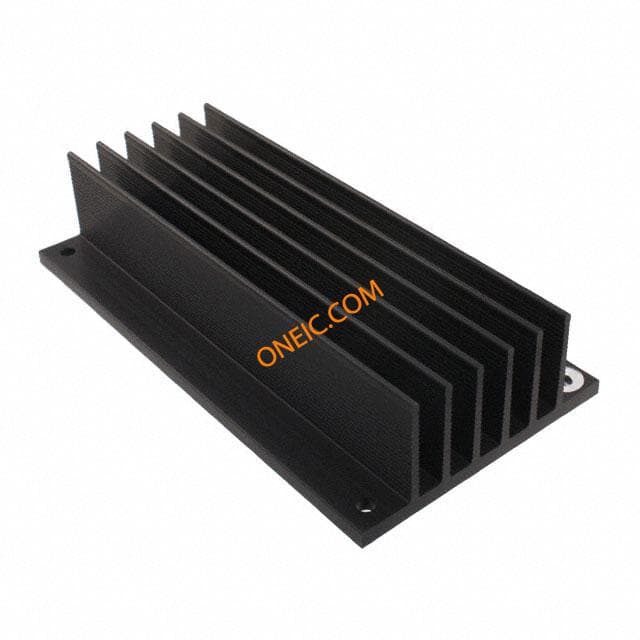

HAF10L
TDK-Lambda Corporation
Heat Sinks Heatsk 116.8x25.4x61 For PFE Series HEATSINK FULL BRICK 1" FINS HEAT SINK
ARA00499
TDK-Lambda Corporation
INPUT INDUCTOR FOR PFE300-700 EMI Filter Beads, Chips & Arrays Input Inductor for PFE300-700 Choke Toroid Pin POWER SUPPLY, AC/DC INPUTINDUCTORFORPFE300-700

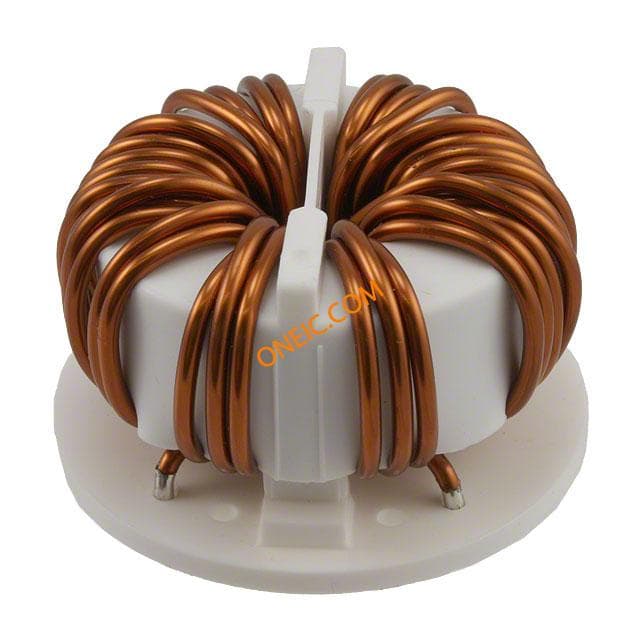

ARA00539
TDK-Lambda Corporation
INPUT INDUCTOR FOR PFE1000 EMIフィルタ ビーズ、チョーク、アレイ INPUT INDUCTOR EMI Filter Beads, Chips & Arrays INPUT INDUCTOR
DFN51120
TDK-Lambda Corporation
RESISTOR THERMAL FUSE - PFE1000 Ceramic Composition Resistors THERMAL FUSE RESIST

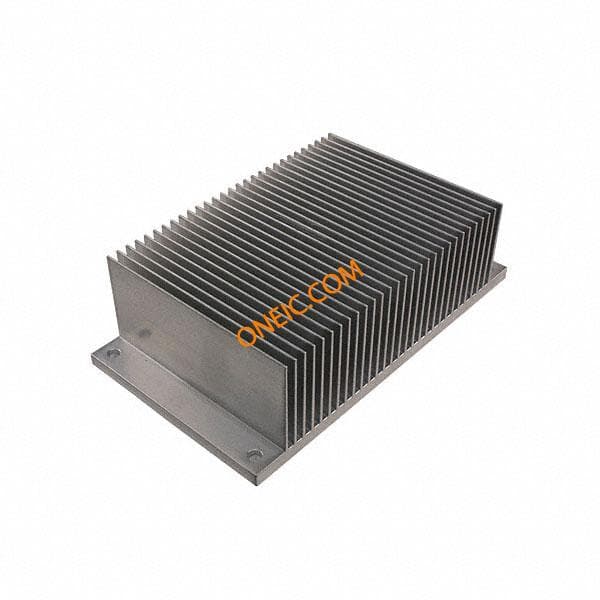

HALF12T
