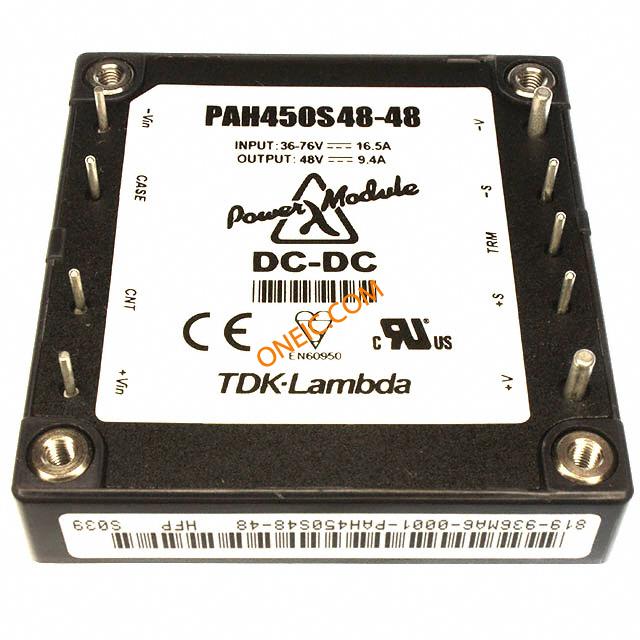

PAH450S4848
| Manufacturer | |
| Description | Module DC-DC 1-OUT 48V 9.4A 451W 9-Pin Half-Brick DC-DC CONVERTER 48VDC 450W 9.4A Isolated DC/DC Converters 450W 48V 9.4A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
| Standard Package Name | Half-Brick | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Isolation | Isolated | Efficiency | 92% |
| Power - Max | 450W | Output Power | 451 W |
| Voltage Rating | 48 V | Current - Output | 9.4 A |
| Number of Outputs | 1 | Power (Watts) - Max | 451W |
| Voltage - Isolation | 1.5kV (1500V) | Voltage - Input (Min) | 48V |
| Current - Output / Channel | 9.4 A | ||
Mechanical
| Width | 1.3 in | Height | 6.1 in |
| Length | 2.44 in | Weight | 10.229449 oz |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 9Half-Brick |
| Length - Overall | 61 | Package Quantity | Half-Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Number of Positions | 9 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Isolated Module | Features | Remote On/Off, OCP, OVP |
| Printed Circuit Board | 9 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
