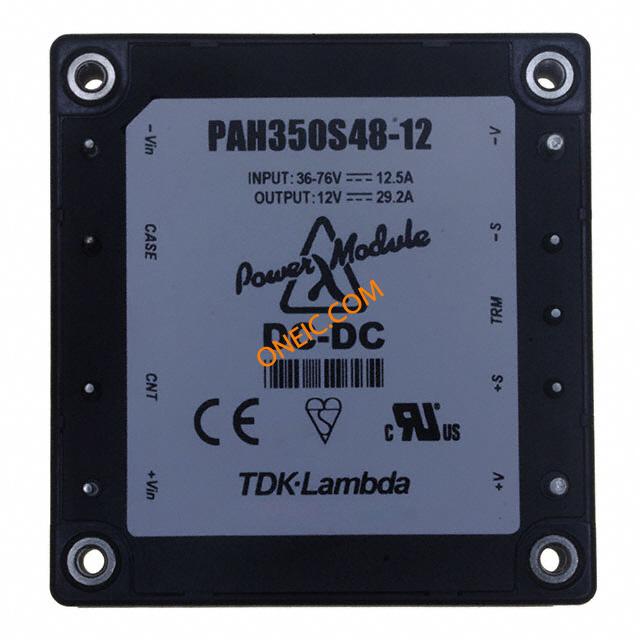

PAH350S4812/T
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 29.2A 350W 9-Pin Half-Brick CONVERT DC/DC 12V 29.2A 350W Isolated DC/DC Converters 350W 12V 29.2A DC-DC CONV, ISO POL, 1 O/P, 350.4W, 29.2A, 12V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Part # Aliases | PAH350S4812/T |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85044090 |
Electrical
| Efficiency | 89% | Output Type | Single |
| Power - Max | 350W | Output Power | 350 W |
| Converter Type | :Half Brick | Voltage Rating | 12 V |
| Voltage - Input | 48 V | Current - Output | 29.2 A |
| Number of Outputs | 1 | Power (Watts) - Max | 350W |
| Voltage - Isolation | 1.5kV (1500V) | Voltage - Input (Min) | 12V |
| DC Voltage - Input (Max) | :76V | Current - Output / Channel | 29.2 A |
Mechanical
| Width | 61 mm | Height | 12.7 mm |
| Length | 57.9 mm | Weight | 3.527396 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 9Half-Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | ||
Product Info
| Type | Step Down | Features | Remote On/Off, OCP, OVP |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
