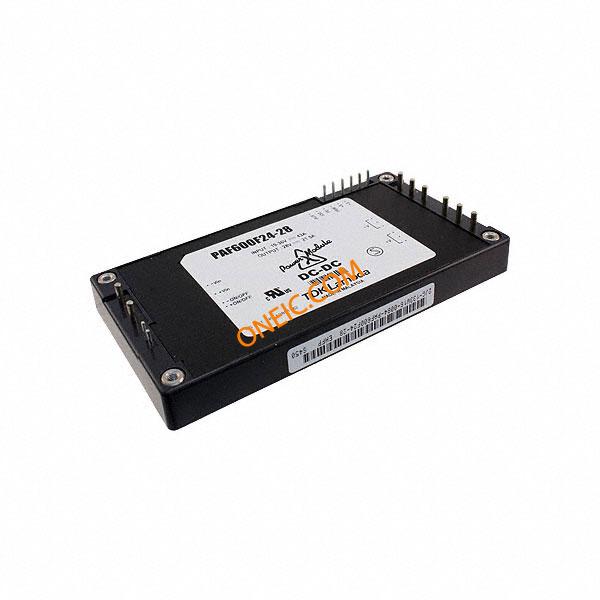

PAF600F24-28
| Manufacturer | |
| Description | DC/DC Converters 602W 28V 21.5A Module DC-DC 1-OUT 28V 21.5A 602W 16-Pin Brick DC-DC CONVERTR 28VDC 602W 21.5A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | 1 |
| Standard Package Name | Brick | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Isolation | Isolated | Efficiency | 90% |
| Power - Max | 600W | Output Power | 602 W |
| Voltage Rating | 24 V | Current - Output | 21.5A |
| Number of Outputs | 1 | Power (Watts) - Max | 602W |
| Voltage - Isolation | 1.5kV (1500V) | Voltage - Input (Min) | 28V |
| Current - Output / Channel | 21.5 A | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Depth | 61 mm | Width | 2.4 in |
| Height | 0.5 in | Length | 4.6 in |
| Packaging | Bulk | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Full Brick | Length - Overall | 116.8 mm |
| Package Quantity | Brick | Size / Dimension | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) |
| Number of Positions | 16 | Shell Size - Insert | 12.7 |
Product Info
| Type | Step Up | DELETED | Compliant |
| Features | Remote On/Off, OCP, OVP | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | -40°C ~ 100°C | Operating Temperature - Junction | 100C |
