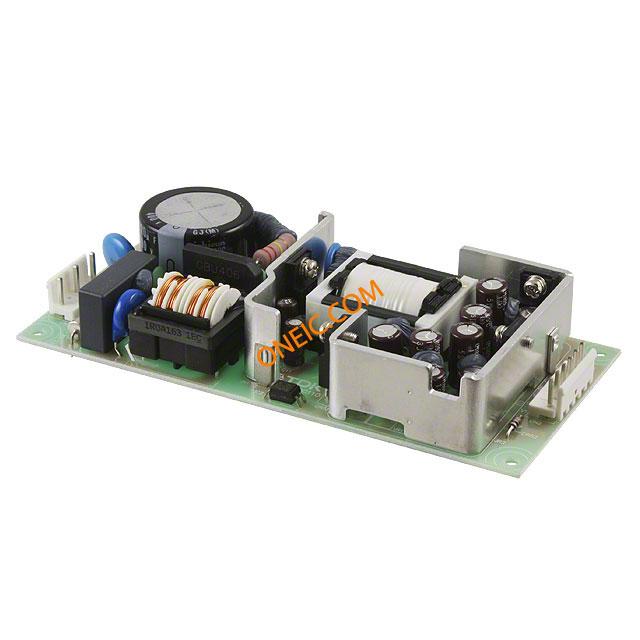

MTW30-51515
| Manufacturer | |
| Description | AC/DC Power Supply Triple-OUT 5V/15V/-15V 3A/0.8A/0.3A 33W 9-Pin AC/DC CONVERT 5V +/-15V 30W Linear and Switching Power Supplies 30W 5V 15V 3A -15V/0.3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CSA, EN, UL | ||
Electrical
| Frequency | 47 to 440 Hz | Efficiency | 76(Typ) % |
| Power - Max | 33 W | Output Power | 30 W |
| Power (Watts) | 30W | Voltage Rating | 85 to 265 V |
| Current - Output | 3|0.8|0.3 A | Number of Outputs | 3 |
| Power Supply Type | Switching (Open Frame) | Voltage - Output 3 | - 15 V |
| Power (Watts) - Max | 33W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 0.8(Typ) A | Voltage - Input (Min) | 5V, ±15V |
| Current - Output / Channel | 0.8 A | ||
Mechanical
| Width | 0.82 in | Height | 0.31 in |
| Length | 1.3 in | Mounting Type | Screw |
| Mounting Style | Chassis | Length - Overall | 140 |
| Panel Mount Type | Open Frame | Size / Dimension | 5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm) |
| Number of Positions | 9 | Shell Size - Insert | 65 |
Product Info
| Type | Regulated | Style | Open Frame |
| Series | MTW | Application | Commercial |
| Applications | Commercial | Printed Circuit Board | 9 |
Environmental
| Operating Temperature | -10 to 60 °C | ||
