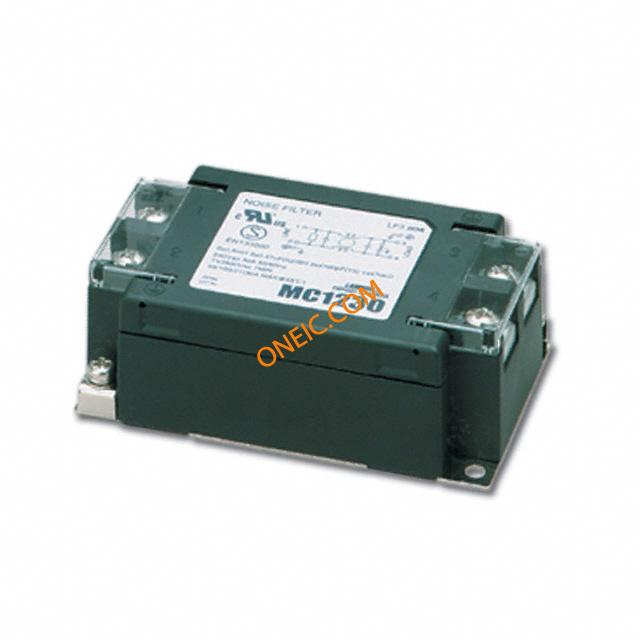

点击放大查看
MC1220DIN
| Manufacturer | |
| Description | Power Line Filters Filter 250V 20A Power Line Filter 60Hz 20A 250VAC Screw DIN Rail EMI FILTER 20A DIN RAIL EMI Filter; 20A; Din Rail AC Power Line Filters Filter 250V 20A EMIFilter,20A,DinRail |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 285-1473 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CSA, SEMKO, UL | ||
Electrical
| Current | 20A | Frequency | 60 |
| Inductance | 2x5.8mH | Filter Type | EMI Filter |
| Voltage Rating | 250 VAC, 250 VDC | Current - Leakage | 1mA |
| Voltage - Rated AC | 250V | Current Rating (Max) | 20 A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
| Phase Noise Typ (dBc/Hz) | 1 | Voltage - Continuous Operating (Max) (MCOV) | 250VAC |
Mechanical
| Depth | 108 mm | Height | 40.9 mm |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Length - Overall | 60 mm |
| Primary Material | AC | Size / Dimension | 34.5mmH×60mmW×97mmL |
| Termination Style | Terminal Block | ||
Product Info
| Type | Filter | Series | MC/MZ12 |
| DELETED | Compliant | Manufacturer | MCSeries |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -25°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
