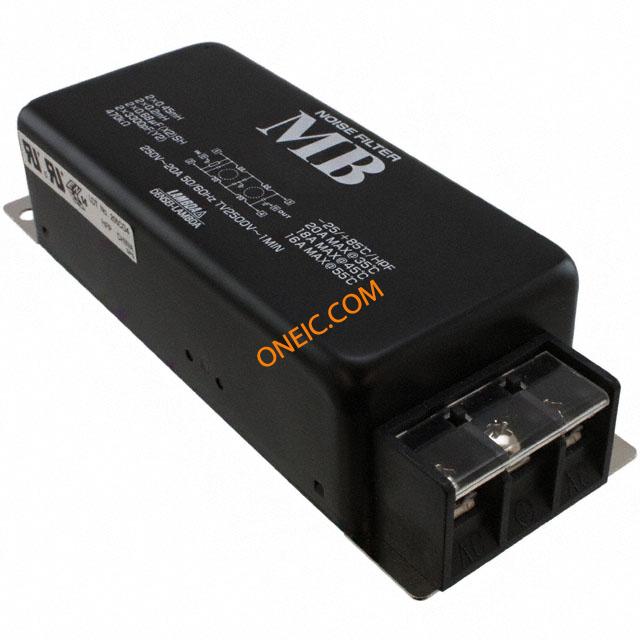

MB1220
| Manufacturer | |
| Description | Power Line Filters Filter 250V 20A EMI FILTER LOW PRO 250VAC 20A AC Power Line Filters Filter 250V 20A Filter;20A;250;1A(Max.)@250V,60Hz;PanelMount;MBSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 285-1467 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA,VDEandENApproved |
| Approval Agency | CSA, UL, VDE | ||
Electrical
| Current | 20A | Filter Type | EMI Filter |
| Voltage Rating | 250 VAC, 250 VDC | Current - Leakage | 1 mA |
| Voltage - Rated AC | 250V | Current Rating (Max) | 20 A |
| Phase Noise Typ (dBc/Hz) | 1 | Voltage - Continuous Operating (Max) (MCOV) | 250VAC |
Mechanical
| Mounting Type | Chassis | Mounting Style | SMD/SMT |
| Primary Material | 2-Stage | Size / Dimension | 35mmH×52mmW×151mmL |
| Termination Style | Screw | ||
Product Info
| Type | EMI | Series | MB |
| Manufacturer | MBSeries | Configuration | Two Stage |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -25°C ~ 85°C |
