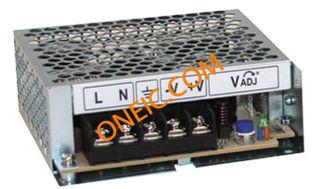

LS75-3.3
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 3.3V 15A 5-Pin POWER SUPPLY 3.3V 15A SGL OUTPUT Linear and Switching Power Supplies 49.5W 3.3V 15A PSU, ENCLOSED, 3.3V, 15A, 75W PowerSupply;AC-DC;3.3V@15A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS75-3.3, TDK-Lambda |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Approval Agency | CE, EN, IEC, UL | ||
Electrical
| Output | 3.3VDC@15A | Ripple | 80mV |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 75(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | :75W | Output Power | 75 W |
| Power (Watts) | 75W | Power - Rated | :49.5W |
| Power - Output | 50W | Voltage Rating | 88 to 264 V |
| Current - Surge | :40A | Frequency - Max | :63Hz |
| Frequency - Min | :47Hz | Load Regulation | 40mV |
| Current - Output | 15 A | Voltage - Supply | :264V |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 49.5W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 1.6 A | Output Ripple Voltage | :80mV |
| Voltage - Input (Min) | 3.3V | Voltage - Output (Max) | :3.6V |
| Voltage Regulation - Line | 20mV | Current - Input Bias (Max) | :1A |
| Current - Output / Channel | 15 A | Voltage - Output (Min/Fixed) | :3V |
Mechanical
| Depth | :98mm | Width | 3.8 in |
| Height | 1.5 in | Length | 5.1 in |
| Weight | 2.866 lbs | Mounting Type | Chassis |
| Mounting Style | Chassis | Adjustment Range | 3.00-3.60 |
| Length - Overall | 129.54 | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm) |
| Number of Positions | 5 | Shell Size - Insert | 38.1 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Timing | :60ms |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | -25 to 70 °C | Storage/Refrigeration Temperature | –40to85degreeC |
