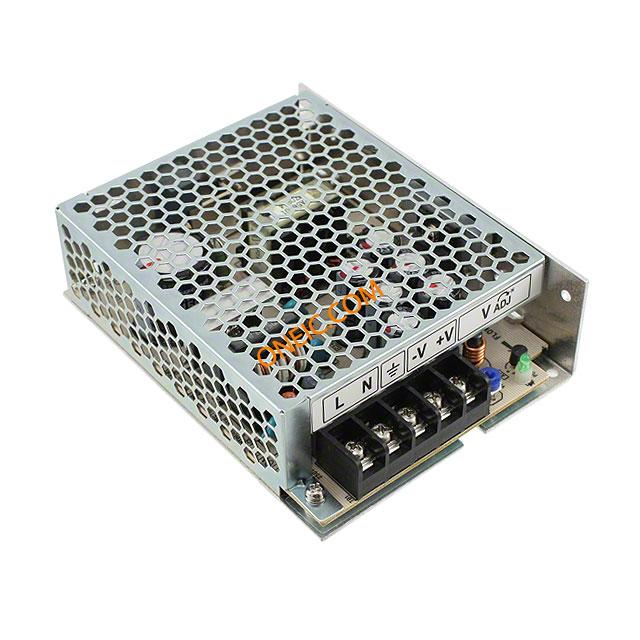

LS75-15
| Manufacturer | |
| Description | Linear and Switching Power Supplies 75W 15V 5A AC-DC 115-230VAC AC/DC Power Supply Single-OUT 15V 5A 5-Pin POWER SUPPLY 15V 5A SGL OUTPUT Power Supply,Enclosed,SMPS,15V,5A,75W PSU, ENCLOSED, 15V, 5A, 75W PowerSupply;AC-DC;15V@5A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS75-15, TDK-Lambda TDK-Lambda 75W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 15V输出, 5A输出, 85%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Rad Hardened | No | Approval Agency | CE, EN, IEC, UL |
Electrical
| Noise | 120mV | Output | 15VDC@5A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 85% | Output Type | :Fixed |
| Power - Max | :75W | Output Power | 75 W |
| Power (Watts) | 75W | Power - Rated | 75W |
| Power - Output | 75W | Voltage Rating | 125 → 373 V dc, 88 → 264 V ac |
| Current - Surge | :40A | Frequency - Max | :63Hz |
| Frequency - Min | :47Hz | Line Regulation | 60mV |
| Load Regulation | 120mV | Current - Output | 15 VDC @ 5A |
| Voltage - Supply | :264V | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 75W |
| Voltage - Isolation | 3000VAC | Output Ripple Voltage | :120mV |
| Voltage - Input (Min) | 15V | Voltage - Output (Max) | :16.5V |
| Current - Input Bias (Max) | :1A | Current - Output / Channel | 5 A |
| Voltage - Output (Min/Fixed) | :13.5V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 1.5in | Width | 3.8in |
| Height | 1.5 in | Length | 5.1in |
| Weight | 410g | Mounting Type | Chassis |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Length - Overall | 129.54 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm) |
| Number of Positions | 5 | Shell Size - Insert | 38.1 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Timing | :60ms |
| Application | Commercial | Applications | Commercial |
| Manufacturer | LSSeries | Configuration | Enclosed |
| Printed Circuit Board | 5 | ||
Environmental
| Operate Time | 648786h | Operating Temperature | -25°C ~ 70°C |
| Maximum Temperature Limit | +70°C | Operating Temperature - Junction | 70C |
