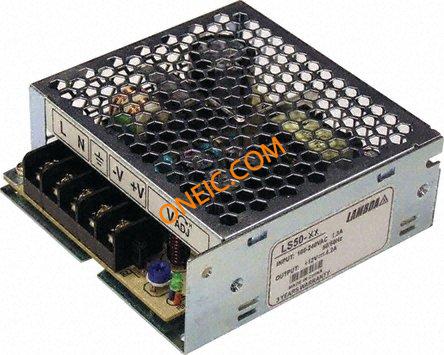

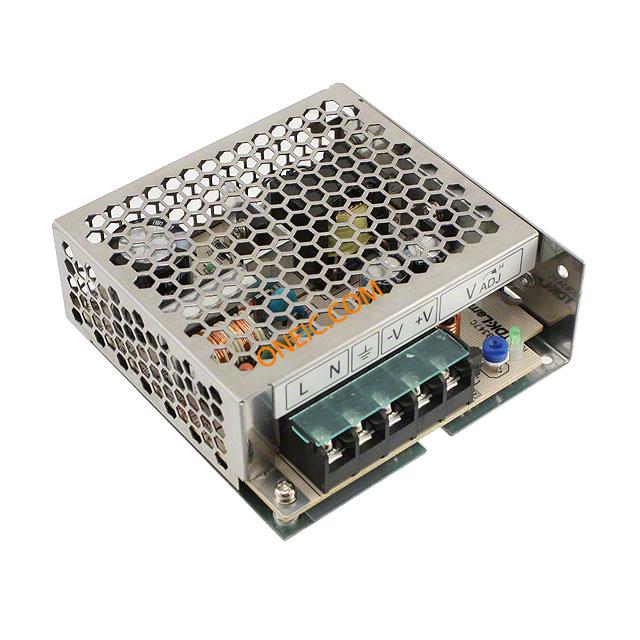

LS50-5
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 5V 10A 5-Pin POWER SUPPLY 5V 10A SGL OUTPUT Power Supply,Enclosed,SMPS,5V,10A,50W Linear and Switching Power Supplies 50W 5V 10A AC-DC 115-230VAC PSU, ENCLOSED, 5V, 10A, 50W PowerSupply;AC-DC;5V@10A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS50-5, TDK-Lambda TDK-Lambda 50W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 5V输出, 10A输出, 80%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Approval Agency | CE, EN, IEC, UL | ||
Electrical
| Noise | 80mV | Output | 5VDC@10A |
| Ripple | 80mV | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 80(Typ) % |
| Output Type | :Fixed | Power - Max | :50W |
| Output Power | 50 W | Power (Watts) | 50W |
| Power - Rated | 50W | Power - Output | 50W |
| Voltage Rating | 88 to 264 V | Current - Surge | :40A |
| Frequency - Max | :63Hz | Frequency - Min | :47Hz |
| Line Regulation | 20mV | Load Regulation | 40mV |
| Current - Output | 10 A | Voltage - Supply | :264V |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 50W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 1.3 A | Output Ripple Voltage | :80mV |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | :5.5V |
| Voltage Regulation - Line | 20mV | Current - Input Bias (Max) | :0.8A |
| Current - Output / Channel | 10 A | Voltage - Output (Min/Fixed) | :4.75V |
Mechanical
| Depth | 1.4in | Width | 3.8in |
| Height | 1.4 in | Length | 3.9in |
| Weight | 350g | Mounting Type | Chassis |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Adjustment Range | 4.75-5.50 | Length - Overall | 99.06 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 3.90" L x 3.80" W x 1.40" H (99.1mm x 96.5mm x 35.6mm) | Number of Positions | 5 |
| Shell Size - Insert | 35.56 | ||
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Timing | :60ms |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | Printed Circuit Board | 5 |
Environmental
| Operate Time | 712890h | Operating Temperature | -25 to 70 °C |
| Maximum Temperature Limit | +70°C | Storage/Refrigeration Temperature | –40to85degreeC |
