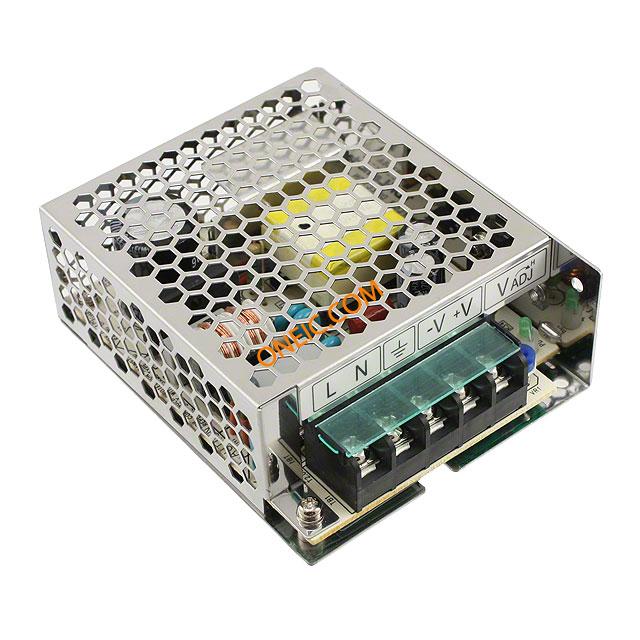

LS35-3.3
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 3.3V 7A 5-Pin POWER SUPPLY 3.3V 7A 23W OUTPUT Linear and Switching Power Supplies 23W 3.3V 7A PowerSupply;AC-DC;3.3V@7A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS35-3.3, TDK-Lambda |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | CE, EN, IEC, UL |
Electrical
| Output | 3.3VDC@7A | Ripple | 80...200 mV (depending on output voltage) |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 75(Typ) % | Output Power | 23 W |
| Power (Watts) | 35W | Power - Input | 14...20 ms @ 115 V |
| Power - Rated | 35 | Power - Output | 23W |
| Voltage Rating | 88 to 264 V | Current - Output | 7 A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| AC Voltage - Input | 88...264 VAC | Current - Output 1 | 7 A |
| Power (Watts) - Max | 23W | Current Rating (Max) | 0.8 A |
| Voltage - Input (Min) | 3.3V | Voltage - Supply, Battery | 125...373 VDC |
| Current - Output / Channel | 7 A | ||
Mechanical
| Size | 99 x 82 x 36 mm | Width | 3.2 in |
| Height | 1.4 in | Length | 3.9 in |
| Weight | 10.582189 oz | Mounting Type | Chassis Mount |
| Mounting Style | Chassis | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) |
Product Info
| Type | Regulated | Series | LS |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | ||
Environmental
| Operating Temperature | -25 to 70 °C | ||
