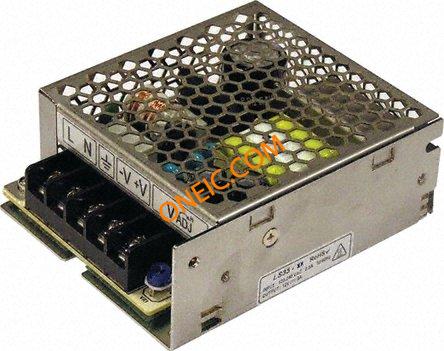

LS35-24
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 1.5A 5-Pin POWER SUPPLY 24V 1.5A 36W OUTPUT Power Supply,Enclosed,SMPS,24V,1.5A,36W Switching Power Supplies 36W 24V 1.5A AC-DC 115-230VAC AC-DC CONV, ENCLOSED, 1 O/P, 35W, 1.5A, 24V PowerSupply;AC-DC;24V@1.5A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS35-24, TDK-Lambda TDK-Lambda 35W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 24V输出, 1.5A输出, 84%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85044090 |
| Approval Agency | CE, EN, IEC, UL | ||
Electrical
| Noise | 120mV | Output | 24VDC@1.5A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 84(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | :35W | Output Power | 36 W |
| Power (Watts) | 35W | Power - Rated | 35W |
| Power - Output | 36W | Voltage Rating | 88 to 264 V |
| Line Regulation | 96mV | Load Regulation | 192mV |
| Current - Output | 1.5 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 36W |
| Current Rating (Max) | 0.8 A | Voltage - Input (Min) | 24V |
| Current - Output / Channel | 1.5 A | ||
Mechanical
| Depth | 1.4in | Width | 3.2in |
| Height | 1.4 in | Length | 3.9in |
| Weight | 270g | Mounting Type | Chassis Mount |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) | ||
Product Info
| Type | Regulated | Series | LS |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | ||
Environmental
| Operate Time | 706464h | Operating Temperature | -25 to 70 °C |
| Maximum Temperature Limit | +70°C | ||
