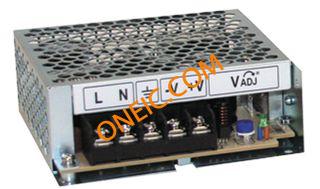

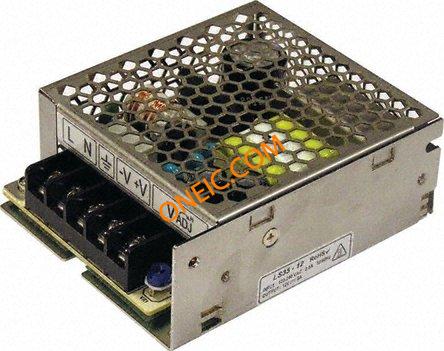

LS35-12
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 3A 5-Pin POWER SUPPLY 12V 3A 36W OUTPUT Power Supply,Enclosed,SMPS,12V,3A,36W Linear and Switching Power Supplies 36W 12V 3A AC-DC 115-230VAC AC-DC CONV, ENCLOSED, 1 O/P, 35W, 3A, 12V PowerSupply;AC-DC;12V@3A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS35-12, TDK-Lambda TDK-Lambda 35W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 12V输出, 3A输出, 82%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85359000 |
| Rad Hardened | No | Approval Agency | CE, EN, IEC, UL |
Electrical
| Noise | 120mV | Output | 12VDC@3A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 82(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | :35W | Output Power | 36 W |
| Power (Watts) | 35W | Power - Rated | 35W |
| Power - Output | 36W | Voltage Rating | 88 to 264 V |
| Line Regulation | 48mV | Load Regulation | 96mV |
| Current - Output | 3 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 36W |
| Voltage - Isolation | 3000 V | Current Rating (Max) | 0.8 A |
| Voltage - Input (Min) | 12V | Current - Output / Channel | 3 A |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 1.4in | Width | 3.2in |
| Height | 1.4 in | Length | 3.9in |
| Weight | 270g | Mounting Type | Chassis Mount |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Length - Overall | 99.06 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) |
| Number of Positions | 5 | ||
Product Info
| Type | Regulated | Series | LS |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | ||
Environmental
| Operate Time | 706464h | Operating Temperature | -25 to 70 °C |
| Maximum Temperature Limit | +70°C | Operating Temperature - Junction | 70C |
