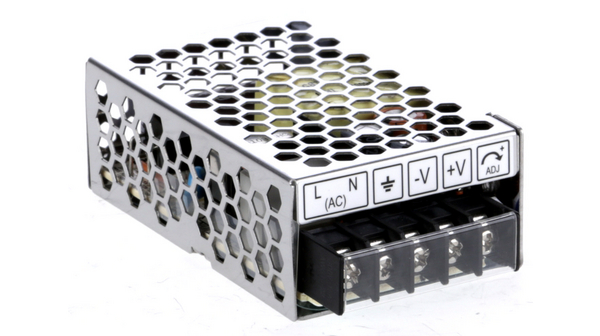

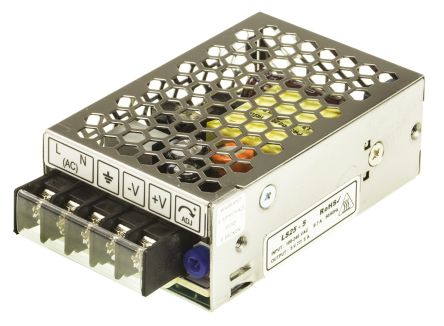

LS25-5
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 5V 5A 5-Pin POWER SUPPLY 5V 5A 25W OUTPUT Power Supply,Enclosed,SMPS,5V,5A,25W Linear and Switching Power Supplies 25W 5V 5A AC-DC 115-230VAC PowerSupply;AC-DC;5V@5A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS25-5, TDK-Lambda TDK-Lambda 25W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 5V输出, 5A输出, 79%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | CE, EN, IEC, UL |
Electrical
| Noise | 80mV | Output | 5VDC@5A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 79(Typ) % | Output Power | 25 W |
| Power (Watts) | 25W | Power - Rated | 25W |
| Power - Output | 25W | Voltage Rating | 88 to 264 V |
| Line Regulation | 20mV | Load Regulation | 40mV |
| Current - Output | 5 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 25W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 0.7 A |
| Voltage - Input (Min) | 5V | Current - Output / Channel | 5 A |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 1.1in | Width | 2in |
| Height | 1.1 in | Length | 3.1in |
| Weight | 170g | Mounting Type | Chassis |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Length - Overall | 78.74 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
| Number of Positions | 5 | Shell Size - Insert | 27.94 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Features | SmallSize,3-YearsWarranty |
| Application | Commercial | Applications | Commercial |
| Manufacturer | LSSeries | Configuration | Enclosed |
| Printed Circuit Board | 5 | ||
Environmental
| Operate Time | 906997h | Operating Temperature | -25 to 70 °C |
| Maximum Temperature Limit | +70°C | Operating Temperature - Junction | 70C |
