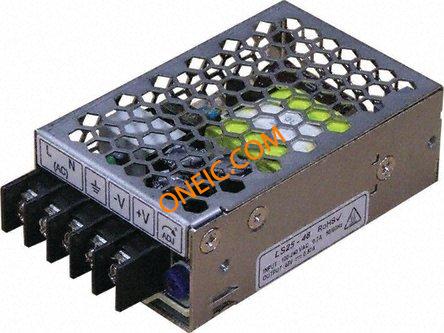

LS25-48
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 48V 0.57A 5-Pin POWER SUPPLY 48V .57A 27W OUTPUT Power Supply,Enclosed,SMPS,48V,0.57A,27W Linear and Switching Power Supplies 27W 48V 0.57A AC-DC 115-230VAC PowerSupply;AC-DC;48V@0.6A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS25-48, TDK-Lambda TDK-Lambda 25W 单输出 嵌入式开关模式电源 SMPS , 125 → 373 V dc, 88 → 264 V ac输入, 48V输出, 570mA输出, 85%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, EN, IEC, UL | ||
Electrical
| Noise | 200mV | Output | 48VDC@0.57A |
| Ripple | 80...200 mV (depending on output voltage) | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 85(Typ) % |
| Output Power | 27 W | Power (Watts) | 25W |
| Power - Input | 14...20 ms @ 115 V | Power - Rated | 25W |
| Power - Output | 27W | Voltage Rating | 88 to 264 V |
| Line Regulation | 192mV | Load Regulation | 384mV |
| Current - Output | 0.57 A | Voltage - Supply | 48 V |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| AC Voltage - Input | 88...264 VAC | Current - Output 1 | 0.57 A |
| Power (Watts) - Max | 27W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 0.7 A | Voltage - Input (Min) | 48V |
| Voltage - Supply, Battery | 125...373 VDC | Voltage Regulation - Load | 384mV |
| Current - Output / Channel | 0.57 A | ||
Mechanical
| Size | 79 x 51 x 28.5 mm | Depth | 1.1in |
| Width | 2in | Height | 1.1 in |
| Length | 3.1in | Weight | 170g |
| Mounting Type | Chassis | Mounting Style | Chassis |
| Package Cooled | Enclosed | Length - Overall | 78.74 |
| Package Quantity | 封闭 | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
| Number of Positions | 5 | Shell Size - Insert | 27.94 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Features | SmallSize,3-YearsWarranty |
| Function | Y | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | Printed Circuit Board | 5 |
Environmental
| Operate Time | 906997h | Operational Life | 906997h |
| Operating Temperature | -25 to 70 °C | Maximum Temperature Limit | +70°C |
