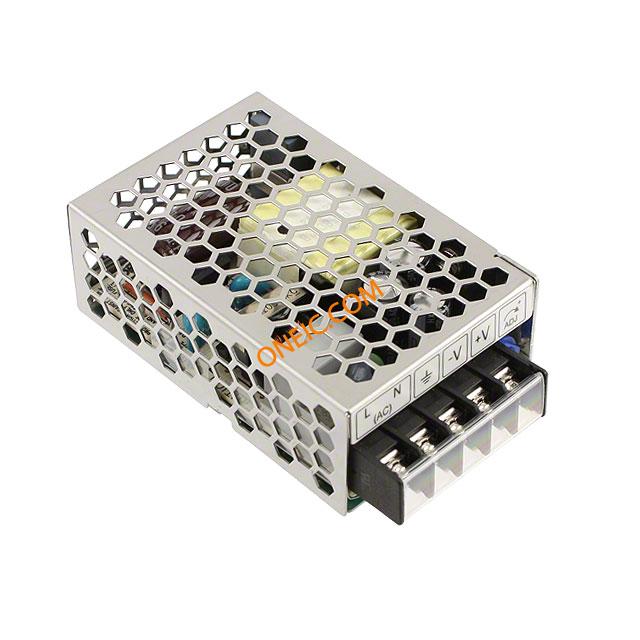

LS25-3.3
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 3.3V 6A 5-Pin POWER SUPPLY 3.3V 6A 20W OUTPUT Linear and Switching Power Supplies 20W 3.3V 6A AC-DC CONV, ENCLOSED, 1 O/P, 25W, 6A, 3.3V PowerSupply;AC-DC;3.3V@6A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS25-3.3, TDK-Lambda |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85044090 | Approval Agency | CE, EN, IEC, UL |
Electrical
| Output | 3.3VDC@6A | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 75(Typ) % |
| Output Type | :Adjustable, Fixed | Power - Max | :25W |
| Output Power | 25 W | Power (Watts) | 25W |
| Power - Output | 20W | Voltage Rating | 88 to 264 V |
| Current - Output | 6 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 20W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 0.7 A |
| Voltage - Input (Min) | 3.3V | Current - Output / Channel | 6 A |
Mechanical
| Width | 2 in | Height | 1.1 in |
| Length | 3.1 in | Weight | 8.818490 oz |
| Mounting Type | Chassis | Mounting Style | Chassis |
| Length - Overall | 78.74 | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
| Number of Positions | 5 | Shell Size - Insert | 27.94 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Features | SmallSize,3-YearsWarranty |
| Application | Commercial | Applications | Commercial |
| Manufacturer | LSSeries | Configuration | Enclosed |
| Printed Circuit Board | 5 | ||
Environmental
| Operating Temperature | -25 to 70 °C | ||
