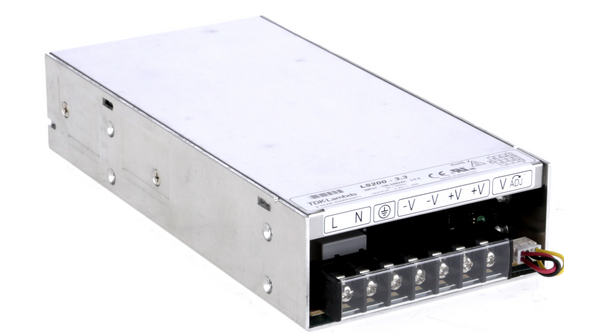

LS200-3.3
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 3.3V POWER SUPPLY 3.3V 40A SGL OUTPUT Linear and Switching Power Supplies 132W 3.3V 40A AC-DC CONV, ENCLOSED, 1 O/P, 200W, 40A, 3.3V PowerSupply;AC-DC;3.3V@40A;88-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS200-3.3, TDK-Lambda |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85044090 |
| Approval Agency | CE, CSA, cUL, EN, IEC, UL | ||
Electrical
| Output | 3.3VDC@40A | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 68 % |
| Output Type | :Adjustable, Fixed | Power - Max | :200W |
| Output Power | 132 W | Power (Watts) | 200W |
| Power - Output | 132W | Voltage Rating | 85 to 264 V |
| Current - Output | 3.3 VDC @ 40A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 132W |
| Current Rating (Max) | 3.5(Typ) A | Voltage - Input (Min) | 3.3V |
| Current - Output / Channel | 40 A | ||
Mechanical
| Width | 3.9 in | Height | 1.61 in |
| Length | 7.8 in | Weight | 7.054792 oz |
| Mounting Type | Chassis Mount | Mounting Style | Chassis |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) | ||
Product Info
| Type | Standard Product | Series | LS200 |
| Features | SmallSize,3-YearsWarranty,RemoteOn,Off,RemoteSense | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | ||
Environmental
| Operating Temperature | -25 to 70 °C | ||
