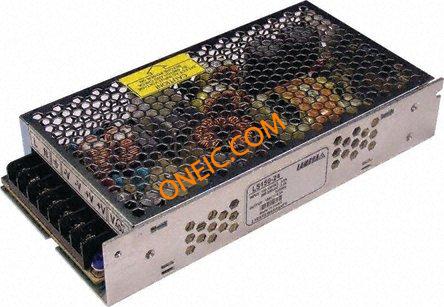

LS150-24
| Manufacturer | |
| Description | Linear and Switching Power Supplies 156W 24V 6.5A AC-DC 115-230VAC AC/DC Power Supply Single-OUT 24V 6.5A 5-Pin POWER SUPPLY 24V 6.5A SGL OUTPUT Power Supply,Enclosed,SMPS,24V,6.5A,156W PSU, ENCLOSED, 24V, 6.5A, 150W PowerSupply;AC-DC;24V@6.5A;115/230VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS150-24, TDK-Lambda TDK-Lambda 150W 单输出 嵌入式开关模式电源 SMPS , 248 → 273V dc输入, 24V输出, 6.5A输出, 86%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Approval Agency | CE, EN, IEC, UL | ||
Electrical
| Noise | 120mV | Output | 24VDC@6.5A |
| Ripple | 120mV | Frequency | 47-63Hz |
| Operation | PFC | Efficiency | 86% |
| Output Type | :Fixed | Power - Max | :156W |
| Output Power | 156 W | Power (Watts) | 150W |
| Power - Rated | 150W | Power - Output | 156W |
| Voltage Rating | 248 → 273 V dc, 76 → 264 V ac, 88 → 132 V ac | Line Regulation | 96mV |
| Load Regulation | 192mV | Current - Output | 24 VDC @ 6.5A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 156W | Voltage - Isolation | 3000VAC |
| Voltage - Input (Min) | 24V | Voltage Regulation - Line | 96mV |
| Current - Output / Channel | 6.5 A | ||
Mechanical
| Depth | 1.5in | Width | 3.9in |
| Height | 1.5 in | Length | 7.8in |
| Weight | 700g | Mounting Type | Chassis |
| Mounting Style | Chassis | Package Cooled | Enclosed |
| Adjustment Range | 22.00-27.20 | Length - Overall | 198.12 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 7.80" L x 3.90" W x 1.50" H (198.1mm x 99.1mm x 38.1mm) | Number of Positions | 5 |
| Shell Size - Insert | 38.1 | ||
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Features | SmallSize,3-YearsWarranty |
| Application | Commercial | Applications | Commercial |
| Manufacturer | LSSeries | Configuration | Enclosed |
| Printed Circuit Board | 5 | ||
Environmental
| Operate Time | 505393h | Operating Temperature | -25°C ~ 70°C |
| Maximum Temperature Limit | +70°C | Storage/Refrigeration Temperature | –40to85degreeC |
