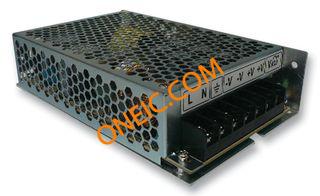

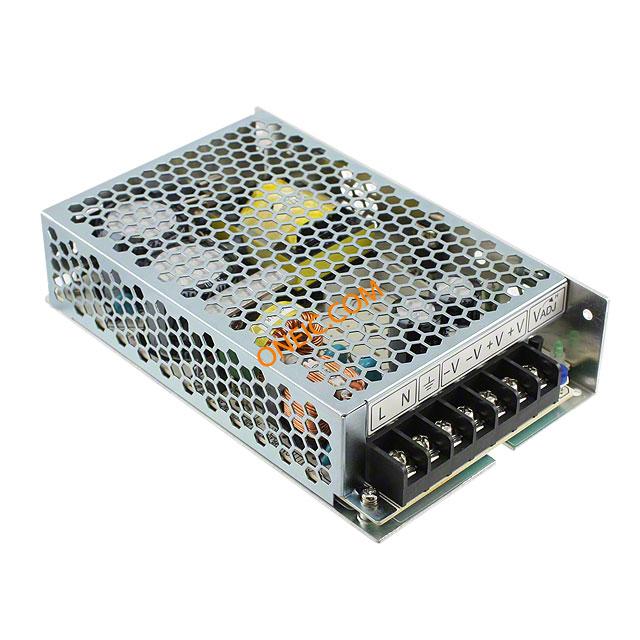

LS100-15
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 15V 7A 5-Pin POWER SUPPLY 15V 7A SGL OUTPUT Linear and Switching Power Supplies 105W 15V 7A AC-DC 115-230VAC PSU, ENCLOSED, 15V, 7A, 100W PowerSupply;AC-DC;15V@7A;115-264VIn;Enclosed;PanelMount;PFC;LSSeries Switched-mode power supply 1 output, LS100-15, TDK-Lambda |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Rad Hardened | No | Approval Agency | CE, EN, IEC, UL |
Electrical
| Output | 15VDC@7A | Ripple | 120mV |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 82(Typ) % | Output Type | :Fixed |
| Power - Max | :105W | Output Power | 105 W |
| Power (Watts) | 100W | Power - Rated | :105W |
| Power - Output | 105W | Voltage Rating | 88 to 264 V |
| Current - Surge | :60A | Frequency - Max | :63Hz |
| Frequency - Min | :47Hz | Load Regulation | 120mV |
| Current - Output | 7 A | Voltage - Supply | :264V |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 105W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 2.2 A | Output Ripple Voltage | :120mV |
| Voltage - Input (Min) | 15V | Voltage - Output (Max) | :16.5V |
| Voltage Regulation - Line | 60mV | Current - Input Bias (Max) | :1.2A |
| Current - Output / Channel | 7 A | Voltage - Output (Min/Fixed) | :13.5V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 96.52 mm | Width | 3.8 in |
| Height | 1.5 in | Length | 6.3 in |
| Weight | 17.637 lbs | Mounting Type | Chassis |
| Mounting Style | Chassis | Adjustment Range | 13.50-16.50 |
| Length - Overall | 160.02 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) |
| Number of Positions | 5 | Shell Size - Insert | 38.1 |
Product Info
| Type | Regulated | Style | Enclosed |
| Series | LS | Timing | :150ms |
| Features | SmallSize,3-YearsWarranty | Application | Commercial |
| Applications | Commercial | Manufacturer | LSSeries |
| Configuration | Enclosed | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | -25 to 70 °C | Operating Temperature - Junction | 70C |
| Storage/Refrigeration Temperature | –40to85degreeC | ||
