JWS30012
| Manufacturer | |

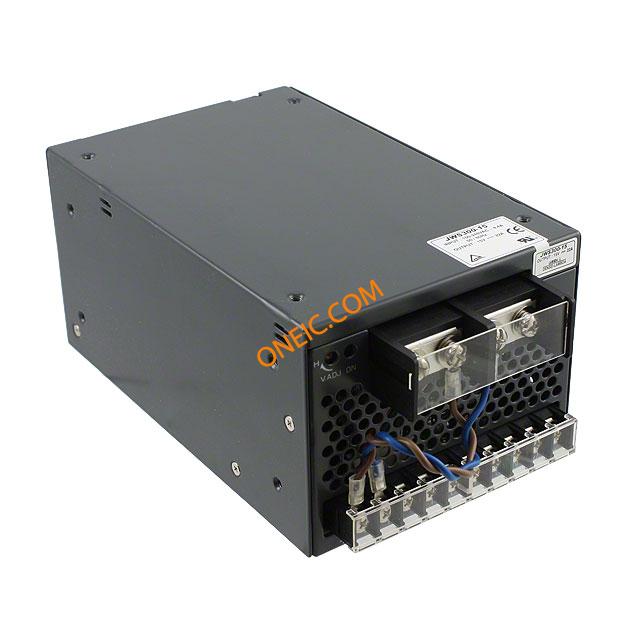

| Description | AC/DC Power Supply Single-OUT 12V 27A 14-Pin POWER SUPPLY 300W 12V SINGLE OUT Linear and Switching Power Supplies 12V 27A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, DENTORI, EN, UL, VDE | ||
Electrical
| Frequency | 47 to 63 Hz | Efficiency | 76(Typ) % |
| Power (Watts) | 300W | Voltage Rating | 85 to 265 V |
| Current - Output | 27 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 324W |
| Voltage - Isolation | 3000VAC | Voltage - Input (Min) | 12V |
| Current - Output / Channel | 27 A | ||
Mechanical
| Width | 120 | Weight | 1 oz |
| Mounting Type | Desktop | Mounting Style | Chassis |
| Length - Overall | 200 | Size / Dimension | 7.48" L x 4.72" W x 3.62" H (190.0mm x 120.0mm x 92.0mm) |
| Number of Positions | 14 | Shell Size - Insert | 92 |
Product Info
| Type | Standard Product | Style | Open Frame |
| Series | JWS | Applications | Commercial |
| Printed Circuit Board | 14 | ||
Environmental
| Operating Temperature | -10°C ~ 60°C | ||
