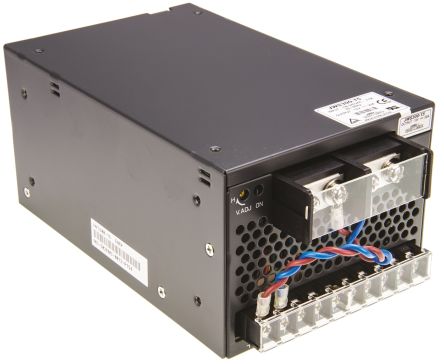

JWS300-15
| Manufacturer | |
| Description | JWS universal input SMPSU,15V 324W PSU, 15V, 22A PowerSupply;AC-DC;15V@22A;85-265VIn;OpenFrame;PanelMount;PFC;JWSSeries TDK-Lambda 330W 单输出 嵌入式开关模式电源 SMPS , 120 → 330 V dc, 85 → 265 V ac输入, 15V输出, 22A输出, 77%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Standards | ULListed,CSACertified,EN60950,VDEApproved,CEApproved,BuilttoMeetDENTORI | Tariff No | 85044090 |
| Approval Agency | :CE, CSA, EN, FCC, UL, VDE | ||
Electrical
| Noise | 150mV | Output | 15VDC@22A |
| Frequency | :63Hz | Operation | PFC |
| Efficiency | 77% | Output Type | :Fixed |
| Power - Max | :330W | Output Power | :330W |
| Power - Rated | 330W | Power - Output | 300W |
| Voltage Rating | 120 → 330 V dc, 85 → 265 V ac | Frequency - Max | :63Hz |
| Line Regulation | 60mV | Load Regulation | 60mV |
| Current - Output | 22A | Voltage - Supply | :47Hz |
| Number of Outputs | 1 | Power Supply Type | :Switch Mode |
| Frequency - Operating | 63Hz | Output Ripple Voltage | :150mV |
| Voltage - Input (Min) | :85V to 265V | Voltage Regulation - Line | 60mV |
| Voltage - Continuous Operating (Max) (MCOV) | :265V | ||
Mechanical
| Depth | 120mm | Width | 92mm |
| Height | :120mm | Length | 190mm |
| Weight | 1900g | Mounting Type | :Chassis |
| Mounting Style | Panel | Package Cooled | Enclosed |
| Primary Material | AC-DC | ||
Product Info
| Type | Commercial | Timing | :20ms |
| Features | Parallelable,RemoteOn/Off,RemoteSense | Applications | :General Purpose |
| Manufacturer | JWSSeries | Configuration | OpenFrame |
Environmental
| Operating Temperature | -10°C | Maximum Temperature Limit | +60°C |
