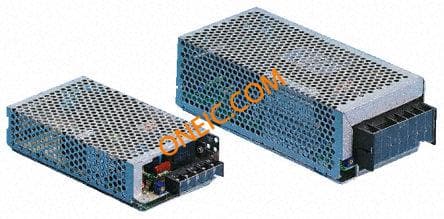

JWS15024/A
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 6.5A 7-Pin PWR SUP 150W 24V 6.5A ENCLOSED Switching Power Supplies 24V 6.5A PowerSupply;AC-DC;24V@6.5A;85-265VIn;Enclosed;PanelMount;PFC;JWSSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Part # Aliases | JWS15024/A |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified,EN60950,VDEApproved,CEApproved,BuilttoMeetDENTORI | Rad Hardened | No |
| Approval Agency | CE, CSA, DENTORI, EN, UL, VDE | ||
Electrical
| Output | 24VDC@6.5A | Frequency | 47 to 63 Hz |
| Operation | PFC | Efficiency | 80(Typ) % |
| Power - Max | 150 W | Output Power | 150 W |
| Power (Watts) | 150W | Power - Output | 150W |
| Voltage Rating | 85 to 265 V | Load Regulation | 150mV |
| Current - Output | 6.5 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 156W |
| Voltage - Isolation | 3000VAC | Frequency - Operating | 63Hz |
| Voltage - Input (Min) | 24V | Voltage Regulation - Line | 96mV |
| Current - Output / Channel | 6.5 A | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 92 mm | Width | 2.4 in |
| Height | 0.5 in | Length | 4.6 in |
| Mounting Type | Desktop | Mounting Style | Chassis |
| Length - Overall | 198.12 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 7.80" L x 3.62" W x 2.56" H (198.1mm x 91.9mm x 65.0mm) |
| Number of Positions | 7 | Shell Size - Insert | 65 |
Product Info
| Type | Standard Product | Style | Enclosed |
| Series | JWS508 | Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Application | Commercial | Applications | Commercial |
| Manufacturer | JWSSeries | Configuration | Enclosed |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | -10 to 50 °C | Operating Temperature - Junction | 50C |
