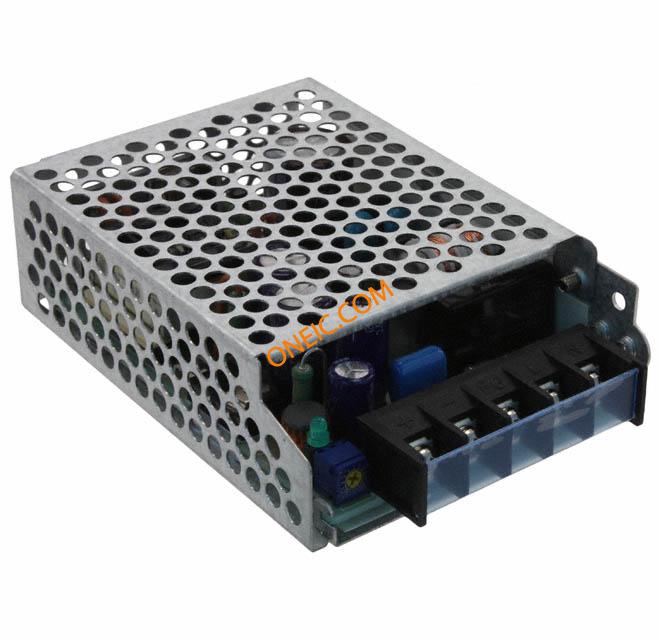

HK25A-24/A
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 1.1A 7-Pin PWR SUP IND LOW PRO 24V 1.1A Linear and Switching Power Supplies 24V 1.1A AC-DC CONV, ENCLOSED, 1 O/P, 25W, 1.1A, 24V PowerSupply;85to132VAC/110to175VDC;24V;0.7A(Load);47to440Hz |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Part # Aliases | HK25A24/A |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | Tariff No | 85359000 |
| Rad Hardened | No | Approval Agency | CSA, cUL, UL |
Electrical
| Output | 24VDC@1.1A | Frequency | 47 to 440 Hz |
| Efficiency | 80(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | :25W | Power (Watts) | 25W |
| Power - Output | 25W | Voltage Rating | 85 to 132 V |
| Current - Output | 1.1 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 26.4W |
| Voltage - Isolation | 2000VAC | Voltage - Input (Min) | 24V |
| Current - Output / Channel | 1.1 A | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 95 mm | Width | 2.83 in |
| Height | 3.9 in | Length | 1.26 in |
| Weight | 0.277 | Mounting Type | Screw |
| Mounting Style | Chassis | Length - Overall | 68 mm |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 3.90" L x 1.26" W x 2.83" H (99.1mm x 32.0mm x 71.9mm) | Number of Positions | 7 |
| Shell Size - Insert | 28 | ||
Product Info
| Type | Standard Product | Style | Enclosed |
| Series | HK-A | Features | Adjustable Output, DC Input Capable |
| Application | Commercial | Applications | Commercial |
| Manufacturer | HK-ASeries | Configuration | Enclosed |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | 0 to 50 °C | Operating Temperature - Junction | 50C |
