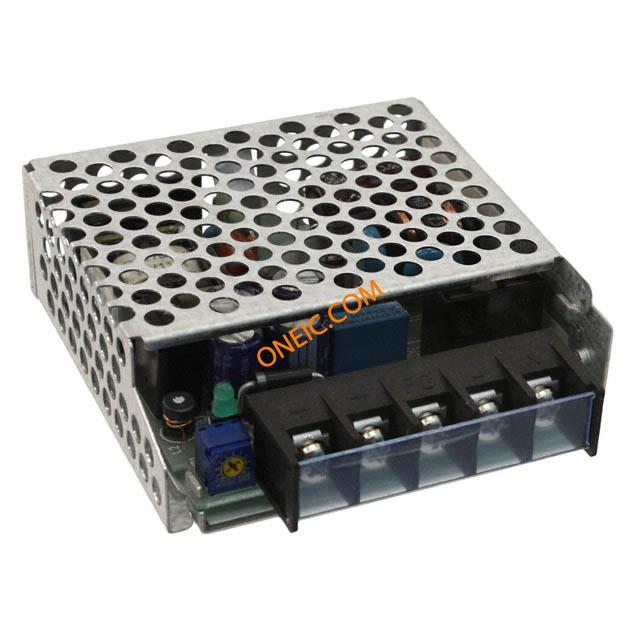

HK10A-24/A
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 0.5A 5-Pin PWR SUP IND LOW PRO 24V .5A Linear and Switching Power Supplies 24V 0.5A AC-DC CONV, ENCLOSED, 1 O/P, 10W, 500mA, 24V PowerSupply;85to132VAC/110to175VDC;24V;0.5A(Load);47to440Hz |
| Category |
Business
| Product | Switching Supplies | Part # Aliases | HK10A24/A |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | Tariff No | 85044090 |
| Rad Hardened | No | Approval Agency | CSA, cUL, UL |
Electrical
| Output | 24VDC@0.5A | Frequency | 47 to 440 Hz |
| Efficiency | 78(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | :10W | Output Power | 10 W |
| Power (Watts) | 10W | Power - Output | 10W |
| Voltage Rating | 85 to 132 V | Current - Output | 0.5 A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 12W | Voltage - Isolation | 2000VAC |
| Voltage - Input (Min) | 24V | Current - Output / Channel | 0.5 A |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 68 mm | Width | 2.83 in |
| Height | 2.83 in | Weight | 0.00001 |
| Mounting Type | Screw | Mounting Style | Chassis |
| Length - Overall | 68 mm | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 2.83" L x 1.02" W x 2.83" H (71.9mm x 25.9mm x 71.9mm) |
| Number of Positions | 5 | Shell Size - Insert | 22 |
Product Info
| Type | Standard Product | Style | Enclosed |
| Series | HK-A | Features | Adjustable Output, DC Input Capable |
| Applications | Commercial | Manufacturer | HK-ASeries |
| Configuration | Enclosed | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | 0 to 50 °C | Operating Temperature - Junction | 50C |
