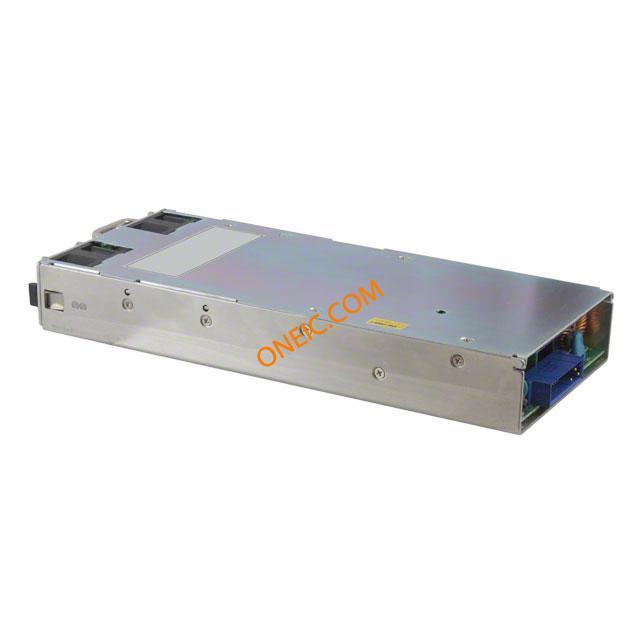

FPS100024
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 40A 960W 24-Pin PWR SUP FNT END 24V 960W 40A Power Supply; 1000W; Front End; 1U High Linear and Switching Power Supplies 960W 24V 40A Rear AC Input AC-DC CONV, RACK MOUNT, 1 O/P, 960W, 40A, 24V PowerSupply,1000W,FrontEnd,1UHigh |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Rad Hardened | No |
| ESD Protection | No | Approval Agency | CE, EN, UL |
Electrical
| Output | 24VDC@40A | Frequency | 47 to 63 Hz |
| Operation | Linear | Efficiency | 86(Typ) % |
| Output Type | :Adjustable, Fixed | Power - Max | 960 W |
| Output Power | 960 W | Power (Watts) | 1000W |
| Power - Output | 960W | Voltage Rating | 85 to 265 V |
| Line Regulation | 0.4% | Load Regulation | 0.8% |
| Current - Output | 40 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 960W |
| Voltage - Isolation | 3000VAC | Voltage - Input (Min) | 24V |
| Current - Output / Channel | 40 A | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 127 mm | Width | 1 in |
| Height | 0.4 in | Length | 2 in |
| Weight | 4.409 lbs | Mounting Type | Screw |
| Mounting Style | Rack | Length - Overall | 319.2 mm |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 1.61" L x 5.00" W x 11.40" H (40.9mm x 127.0mm x 289.6mm) | Number of Positions | 24 |
| Shell Size - Insert | 41 | ||
Product Info
| Type | Regulated | Style | Enclosed |
| Series | FPS1000 | Features | HighEfficiency,HotSwappable,PFC,RemoteOn/Off,RemoteSense |
| Application | Commercial | Applications | Commercial |
| Manufacturer | FPS1000Series | Configuration | Enclosed |
| Printed Circuit Board | 24 | ||
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
