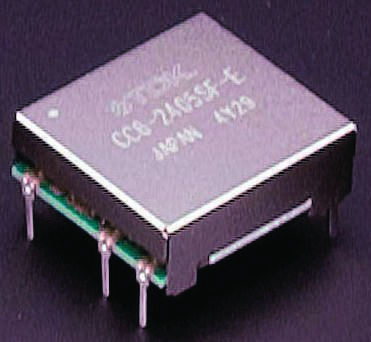

CC6-2412SF-E
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 0.5A 6W 7-Pin PDIP CONV DC/DC 6W SNGL 24V 12V PCB DC/DC Converters 6W 12V 0.5A DC-DC CONV, ISO POL, 1 O/P, 6W, 500mA, 12V POWERSUPPLY,12(15)V,6W,24VINPUT TDK-Lambda 隔离式直流-直流转换器 , 12V dc输出, 500mA输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85044030 | Rad Hardened | No |
Electrical
| Output | 12VDC@0.5A | Isolation | Isolated |
| Output Type | DC/DC Converter | Power - Max | 6W |
| Output Power | 6 W | Converter Type | :Isolated POL |
| Power - Output | 6W | Voltage Rating | 12 V |
| Voltage - Input | 24 V | Current - Output | 0.5 A |
| Number of Outputs | 1 | Power (Watts) - Max | 6W |
| Voltage - Isolation | 500V | Voltage - Input (Min) | 12 ~ 15 V |
| DC Voltage - Input (Max) | :36V | Current - Output / Channel | 0.5 A |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Depth | 21.11 mm | Width | 22.6 mm |
| Height | 8.4 mm | Length | 35.56 mm |
| Weight | 3.527396 oz | Packaging | Tray |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 7PDIP |
| Length - Overall | 22.86 mm | Package Quantity | PDIP |
| Primary Material | DC-DC | Size / Dimension | 0.90" L x 0.83" W x 0.34" H (22.8mm x 21.1mm x 8.5mm) |
| Number of Positions | 7 | Shell Size - Insert | 8.51 |
Product Info
| Type | Step Down | Series | CC-E |
| DELETED | Compliant | Features | RemoteOn/Off |
| Manufacturer | CC-ESeries | Configuration | OpenFrame |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
