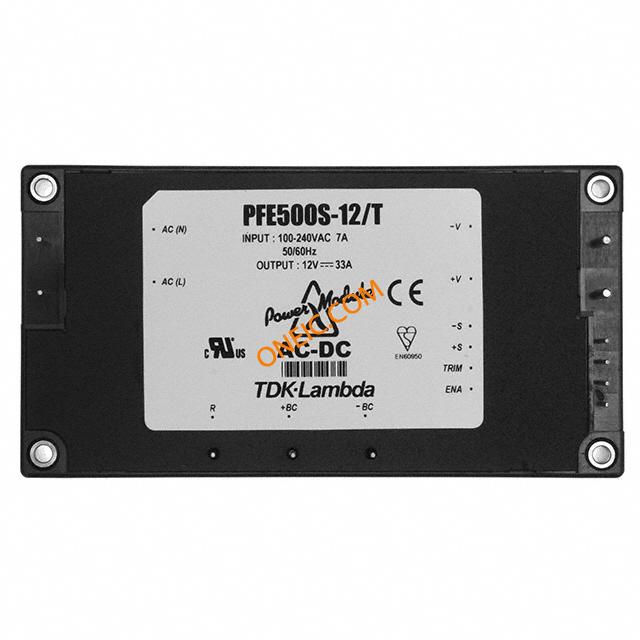

PFE500S-12/T
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 33A 396W 8-Pin AC/DC CONVERTER 12V 33A 500W Linear and Switching Power Supplies 396W 12V 33A |
| Category |
Business
| Product | Switching Supplies | Part # Aliases | PFE500S12/T |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Frequency | 63 Hz | Efficiency | 83% |
| Power - Max | 396 | Output Power | 396 W |
| Power (Watts) | 500W | Voltage Rating | 265 VAC |
| Line Regulation | 48mV | Load Regulation | 48mV |
| Power - Cooling | 396 W | Current - Output | 12 VDC @ 33A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 396W | Voltage - Isolation | 3000VAC |
| Voltage - Input (Min) | 12V | Current - Output / Channel | 33 A |
Mechanical
| Width | 61 mm | Height | 12.7 mm |
| Length | 116.8 mm | Weight | 8.818490 oz |
| Mounting Type | Through Hole | Mounting Style | Panel |
| Length - Overall | 116.8 | Panel Mount Type | Enclosed |
| Size / Dimension | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Number of Positions | 8 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE500 | Features | OCP, OTP, OVP |
| Application | Commercial | Applications | Commercial |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
