点击放大查看

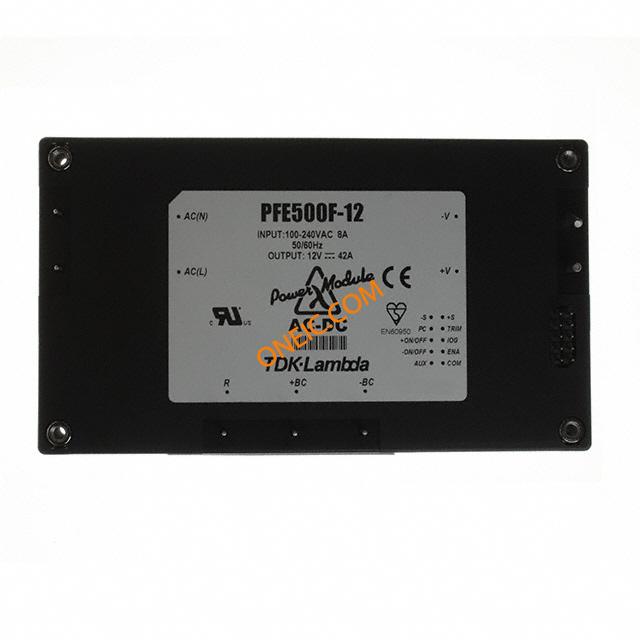

PFE500F-12
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 42A 504W 8-Pin AC/DC CONVERTER 12V 42A 500W Linear and Switching Power Supplies 504W 12V 42A M3 tapped mounting PowerSupply;AC-DC;12V@42A;85-265VIn;Enclosed;PanelMnt;Telecom;PFC;PFESeries |
| Category |
Business
| Product | Switching Supplies | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Output | 12VDC@42A | Frequency | 63 Hz |
| Operation | PFC | Efficiency | 83% |
| Power - Max | 504 | Output Power | 504 W |
| Power (Watts) | 500W | Power - Output | 504W |
| Voltage Rating | 265 VAC | Line Regulation | 48mV |
| Load Regulation | 48mV | Power - Cooling | 504 W |
| Current - Output | 12 VDC @ 42A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 504W |
| Voltage - Isolation | 3000VAC | Voltage - Input (Min) | 12V |
| Current - Output / Channel | 42 A | ||
Mechanical
| Width | 70 mm | Height | 12.7 mm |
| Length | 122 mm | Weight | 10.582189 oz |
| Mounting Type | Through Hole | Mounting Style | Panel |
| Adjustment Range | 9.6-14.4V | Length - Overall | 116.8 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 4.80" L x 2.76" W x 0.50" H (122.0mm x 70.0mm x 12.7mm) | Number of Positions | 8 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE500 | Features | Parallelable |
| Application | Commercial | Applications | Commercial |
| Manufacturer | PFESeries | Configuration | Enclosed |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
