B66396A2000X

Manufacturer	TDK Electronics AG
Description	BUEGEL ETD54 Coil Former From Stainless Spring Steel Material FERRITE CORES Yoke Mounting Kit For Use With B66396 Ferrite Cores & Accessories YOKE ETD 54 CLIP, ETD54 FERRITE CORE YOKE ETD54/28/19CLIP
Category	Connector SolutionsPower Entry ConnectorsPower Entry Connectors

对参数有疑问？问 AI 助手

Business

Product	Hardware & Accessories	Part # Aliases	B66396A2000X000
Standard Package	75	Factory Pack Quantity	75

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85049018

Electrical

Core Size	ETD 54 x 28 x 19	Tolerance	- %
Connector Impedance	:Mounting Clip

Mechanical

Depth	:19.3mm	Width	:59.7mm
Length	:11.7mm	Weight	0.006
Packaging	Bulk	Width - Overall	19.3 mm
Length - Overall	59.7 mm	Diameter - Outside, Non-Expanded	12 mm

Product Info

Type	Coil Former	Product Type	Yoke
Accessory Type	Yoke	For Use With/Related Products	B66396

Documents & Media

PDF Document

80929.pdf

Similar Parts

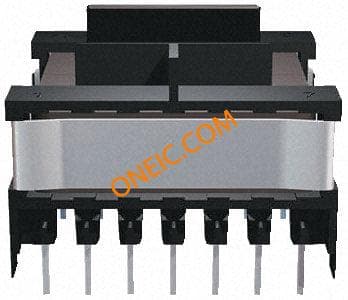

B66396W1022T1
