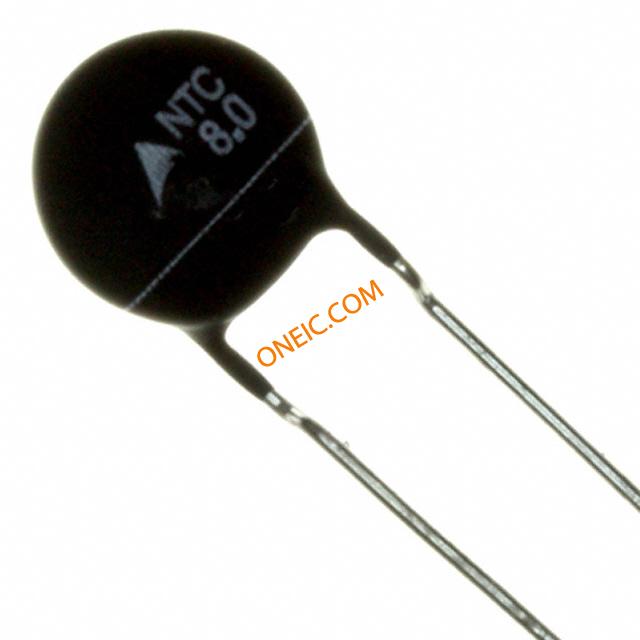

B57235S809M
| Manufacturer | |
| Description | Thermistor NTC 8Ohm 20% 2-Pin Bulk Inrush Current Limiters 8 Ohms 3.5amps 2900k Thermistor NTC 8 Ohm 20% 2-Pin Radial 2900K Bulk INRSH CURRNT LMTR 8.0 OHM RADIAL NTCTHERMISTORS235/8/M |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | B57235S0809M000 | Product Category | Inrush Current Limiters |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | UL |
Electrical
| Voltage | 110 VAC, 230 VAC | Tolerance | 20 % |
| R @ 25degC | 8.0 Ohm | Resistance | 8 Ohms |
| Power - Rated | 1.8 W | Sensitivity Index | 2900 K |
| Resistance @ 25degC | 8 ohm | Current Rating (Max) | 3.5 A |
| Resistance Tolerance | 7 to 50 Ohm | Dissipation Factor (DF) | 9 mW/K |
| Connector - Voltage Input | 0.6mm dia. x 36mm Opposing Crimp Standoff | Current - Steady State Max | 3.5A |
Mechanical
| Depth | 6 mm | Width | 6 mm |
| Height | Not Required mm | Diameter | 9.5 mm |
| Packaging | Bulk | Height (Max) | 14(Max) |
| Lead Spacing | 5 mm | Pin Diameter | 0.6 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 2 | Length - Overall | Not Required mm |
| Size / Dimension | 9.5 mm Dia. x 6 mm W | Number of Contacts | 2 |
| Number of Positions | 2 | ||
Product Info
| Type | NTC | Series | B57235S |
| Manufacturer | EPCOS / TDK | ||
Environmental
| Thermal Resistance | 60 s | Operating Temperature | - 55 C to + 170 C |
