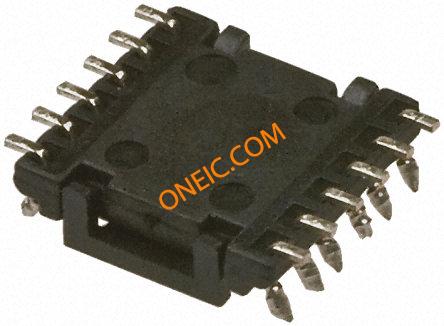

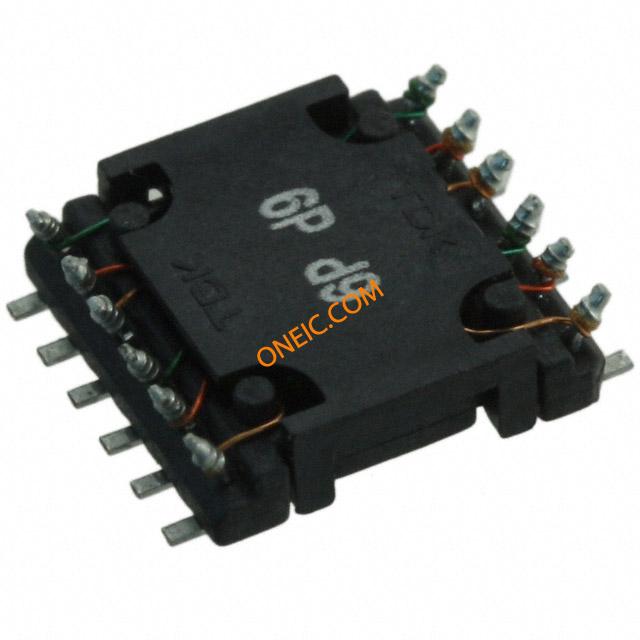

ZCYS51R5-M6PT-01
| Manufacturer | |
| Description | Electromechanical Filter Common Mode Filter 0.5A ZCYS51 200R 500mA 6LINE IND COM MODE ARRAY 200 OHM 6LINE TDK Wirewound Surface Mount Inductor 0.5A Idc Common Mode Chokes Hex 200Ohm 50MHz to 300MHz 500mA 250mOhm DCR SMD T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Lead Time | 70 Days |
| Unit Pack | 2000 | Other Names | 445-6698-1 |
| Subcategory | Common Mode Chokes | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current | 500mA | Impedance | 200X2Ohm |
| Inductance | L X2µH | Filter Type | Data, Signal Line |
| Test Frequency | 50MHz | Current - Output | 500mA |
| DC Resistance (DCR) | 0.3Ohm | Current Rating (Max) | 0.5A |
| Resistance - Initial (Ri) (Min) | 0.25Ω | ||

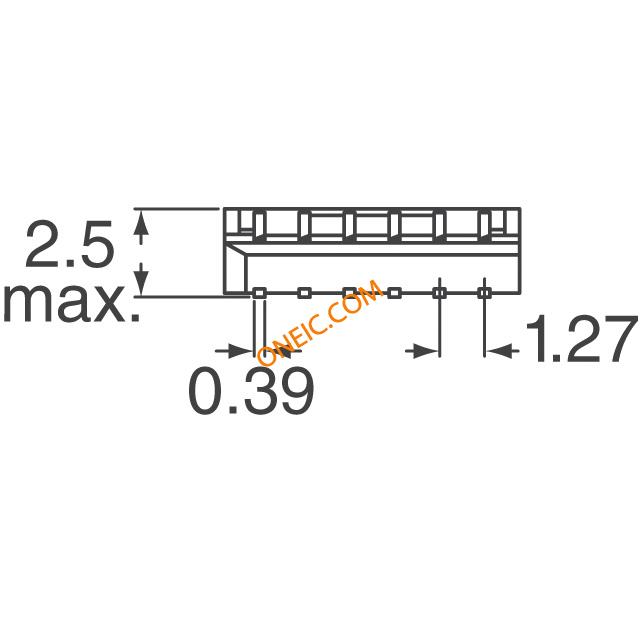

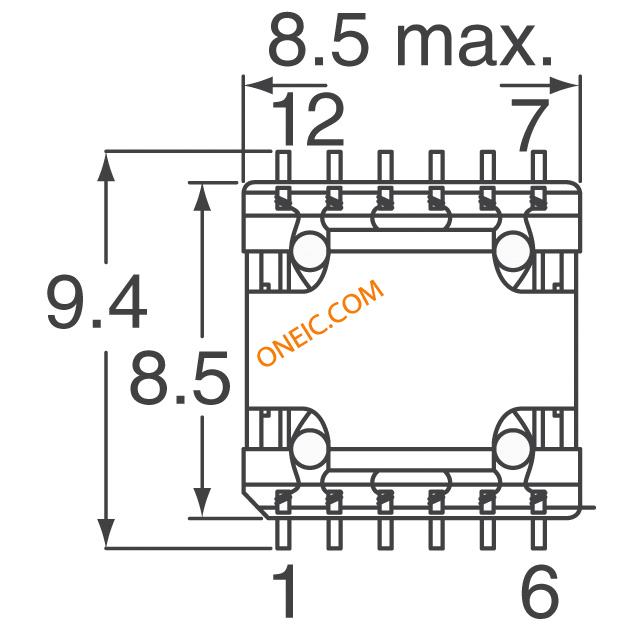

Mechanical
| Depth | 9.4mm | Width | 8.5mm |
| Height | 2.5mm | Length | 8.5mm |
| Weight | 0.25g | Packaging | REEL |
| Height (Max) | 0.098" (2.50mm) | Mounting Type | SMD |
| Size / Dimension | 0.335" L x 0.370" W (8.50mm x 9.40mm) | ||
Product Info
| Design | 6-Line | Matchcode | INDKFIL |
| Technology | COMMONMODE | Number of Lines | 6 |
| Standard Leadtime | 22 weeks | ||
Environmental
| Temperature - Test | -25°C | Operating Temperature | -25 to 85 °C |
