TCM1210-900-2P-T
| Manufacturer | |
| Description | EMI Filters 90ohms @ 100MHz 2 lines CHOKE COMMON MODE 90 OHM SMD TCM1210 series SMT choke 90R 100mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Other Names | 445-2971-2 |
| Subcategory | Common Mode Chokes | Standard Package | 4,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 100mA | Impedance | 90 Ohm |
| Tolerance | ±20% | Filter Type | Data, Signal Line |
| DC Resistance (DCR) | 1.75 Ohm Max | Current Rating (Max) | 100mA |
| Resistance - Initial (Ri) (Min) | 1.2Ω | ||
Mechanical
| Depth | 1mm | Height | 0.67mm |
| Length | 1.25mm | Packaging | Tape and Reel |
| Height (Max) | 0.026" (0.67mm) | Mounting Type | Surface Mount |

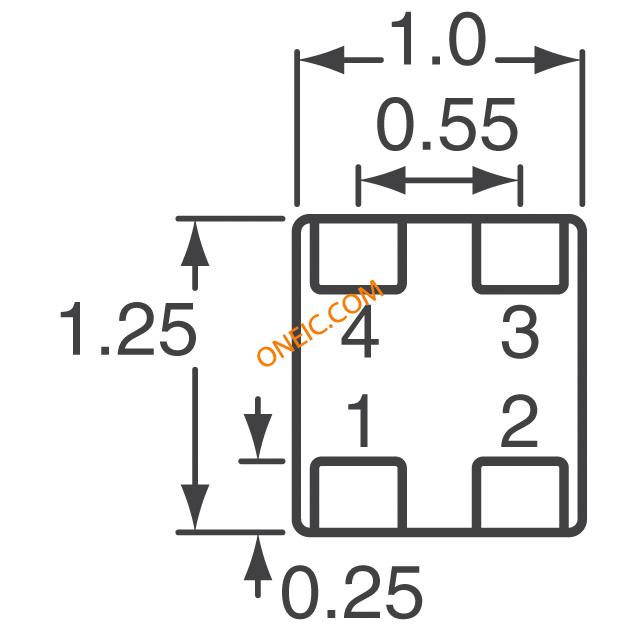

| Package / Case | 0504 (1210 Metric), 4 Lead | Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
Product Info
| Number of Lines | 2 | Industry Aliases | TCM1210-900-2PT |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
