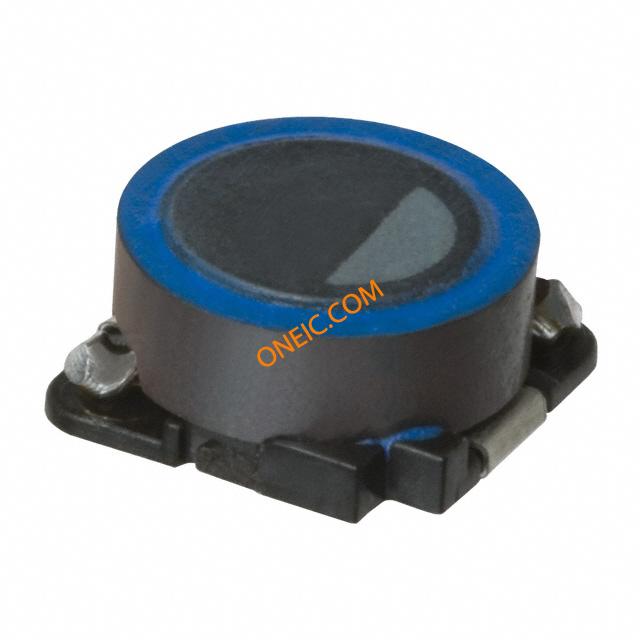

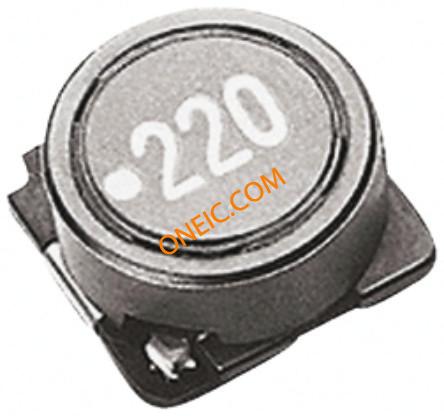

SLF7032T-221MR29-2-PF
| Manufacturer | |
| Description | Fixed Inductors SMD 220uH 0.29amps INDUCTOR SHIELD PWR 220UH 7032 Inductor SMD SLF7032 220uH 290mA Ind Power Shielded Wirewound 220uH 20% 100KHz 290mA T/R TDK SLF7032 系列 绕线贴片电感器, 220 μH ±20%, 290mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 98 Days | Other Names | 445-2004-1 |
| Subcategory | Inductor Surface Mount | Product Category | Fixed Inductors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Military Standard | Not Required | ||
Electrical
| Impedance | Not Required ohm | Tolerance | 20 % |
| Inductance | 220 uH | Test Frequency | 100 kHz |
| Inductance Range | 220 μH | DC Resistance (DCR) | 1.05 Ohm |
| Current Rating (Max) | 0.29 A | Resistance - 25degC (Typ) | 1.05Ω |
| Current - DC Forward (If) (Max) | 290 mA | Resistance - Initial (Ri) (Min) | 1.05 Ohms |
Mechanical
| Depth | 7.2 mm | Width | 7 mm |

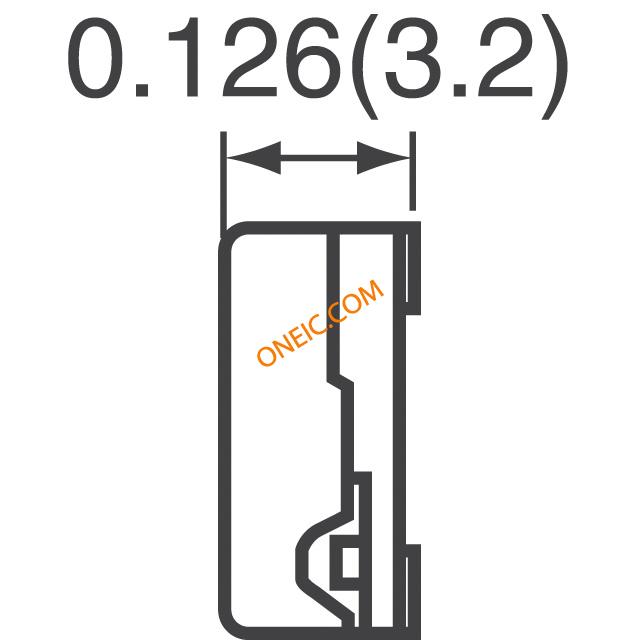

| Height | 3.4 mm | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Shielded |
| Mounting Type | Surface Mount | Package / Case | 3.2 mm |
| Material - Core | Ferrite | Length - Overall | 7.2 mm |

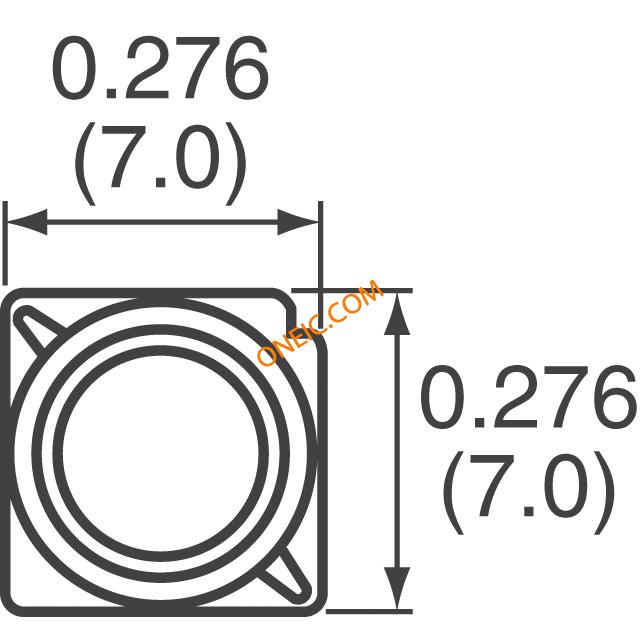

| Size / Dimension | 7 mm W x 7 mm L x 3.2 mm H | Termination Style | SMD/SMT |
| Height - Seated (Max) | 0.134" (3.40mm) | ||
Product Info
| Type | Wirewound | Series | SLF |
| Function | Y | Technology | Wirewound |
| Failure Rate | Not Required | Industry Aliases | SLF7032T-221MR29-2PF |
Environmental
| Operating Temperature | - 20 C to + 85 C | ||
