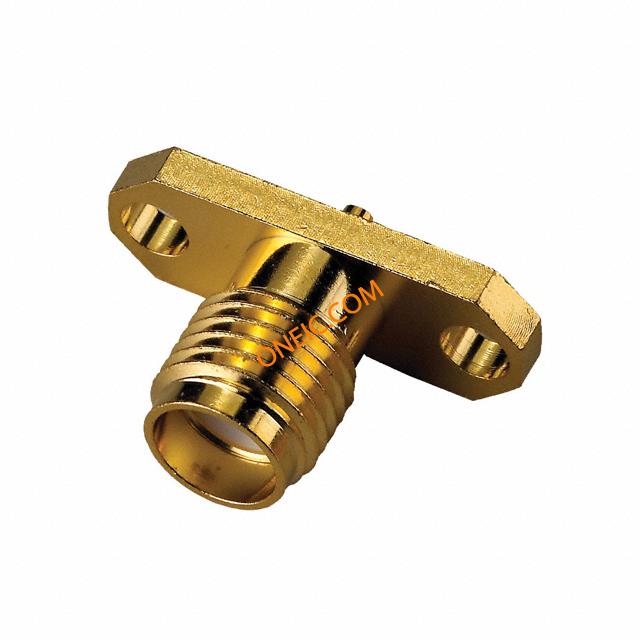

PCB.SMAFST.2H.A.HT
| Manufacturer | |
| Description | CONN SMA JACK STR SOLDER RF Connectors / Coaxial Connectors SMA straight panel mnt receptacle-Gold |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Standard Package | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 335V |
| Frequency - Max | 12.4GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Packaging | Tray | Body Finish | Gold |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Panel Mount, Flange (2 Hole) |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Threaded | Connector Style | SMA |
| Contact Material | Phosphor Bronze | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
Product Info
| Gender | Jack | Polarity | Standard |
| RF Family/Standard | SMA | ||
