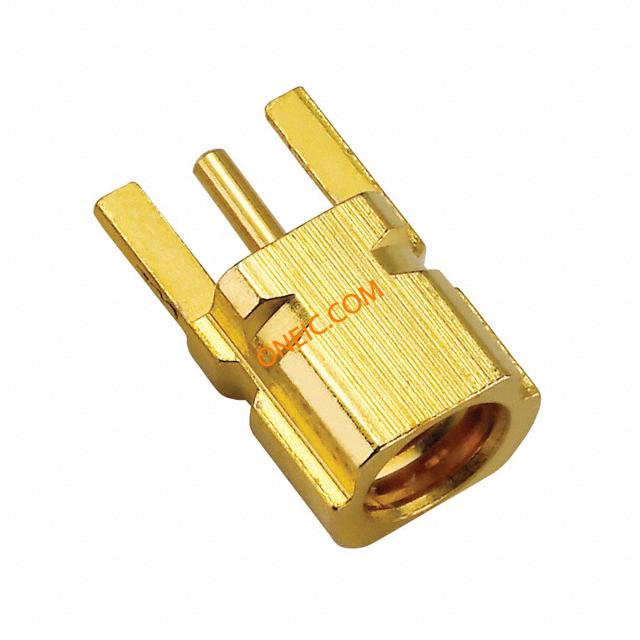

点击放大查看
EM.PCB.MMCX.F.ST.JACK.HT
| Manufacturer | |
| Description | CONN MMCX JACK STR EDGE MNT RF Connectors / Coaxial Connectors MMCX straight Edge mount Jack |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Standard Package | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 170V |
| Frequency - Max | 6GHz | Insulation Resistance | 1000 MOhms |
Mechanical
| Packaging | Tray | Body Finish | Gold |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Board Edge, Cutout |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Snap-On | Connector Style | MMCX |
| Contact Material | Phosphor Bronze | Termination Style | SMD/SMT |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | ||
Product Info
| Gender | Jack | Polarity | Standard |
| RF Family/Standard | MMCX | ||
