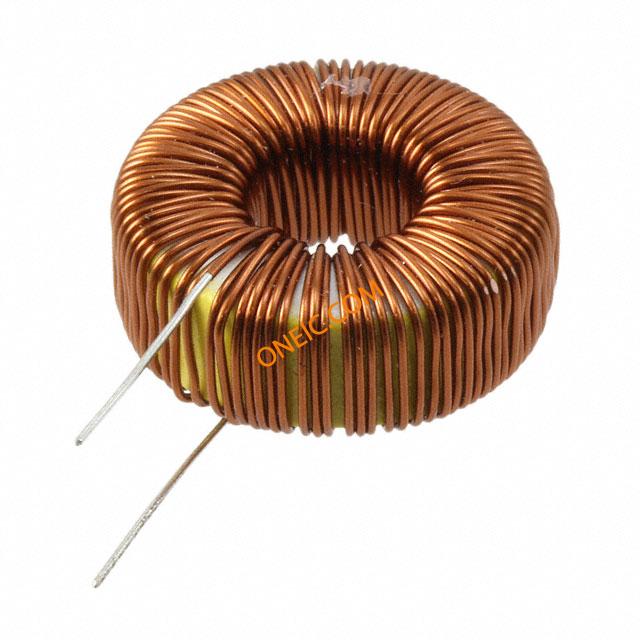

DPO-0.5-470
| Manufacturer | |
| Description | INDUCTOR 470UH .5A Inductor: wire; 470uH; 0.5A; 322mΩ; THT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1295-1163 | Standard Package | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Core Type | wire | Inductance | 470µH |
| Resistance | 322mΩ | Test Frequency | 10kHz |
| DC Resistance (DCR) | 322 mOhm Max | Current Rating (Max) | 500mA |
Mechanical
| Size | 0.787" Dia x 0.354" W (20.00mm x 9.00mm) | Width | 9mm |
| Weight | 0.01 kg | Diameter | 20mm |
| Packaging | Tray | Shielding | Unshielded |
| Mounting Type | Through Hole | Package / Case | Radial |
| Package Quantity | 100 | Size / Dimension | 0.787" Dia x 0.354" W (20.00mm x 9.00mm) |
Product Info
| Spg | 100 | Type | Toroidal |
| Series | DP | Number of Units | 1 |
| Output Configuration | Through Hole | Application Specifics | EMI/RFI filters, switched mode power supplies |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
