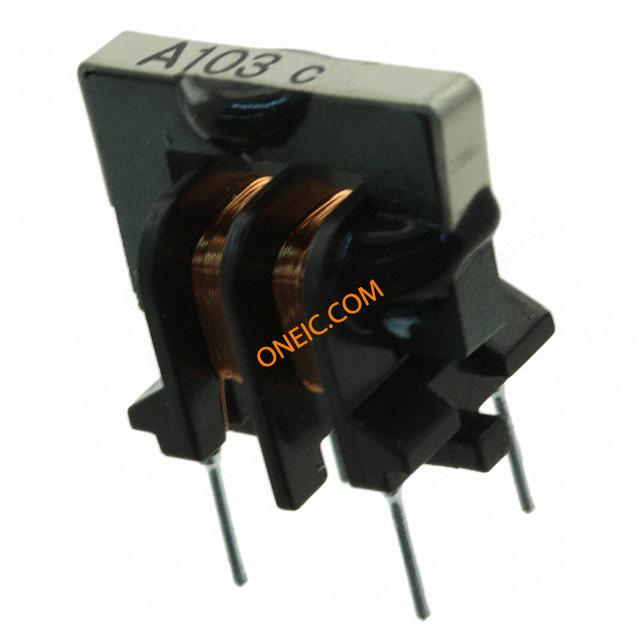

TLF9UA103WR23K1
| Manufacturer | |
| Description | COMMON MODE CHOKE COIL 10MH BOX コモンモード フィルタ /チョーク COMMON MODE CHK COIL 10MH CHOKE COMMON MODE 10000UH Common Mode Filters / Chokes COMMON MODE CHK COIL 10MH Common Mode Chokes Dual 10mH 1kHz 230mA Thru-Hole Bulk |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | メーカ | Taiyo Yuden |
| Other Names | 587-2793 | Standard Package | 500 |
Compliance
| RoHS | RoHS 認証 | ||
Electrical
| Current | 230mA | Tolerance | - 10 %, + 100 % |
| Inductance | 10 mH | Filter Type | Power Line |
| Resistance - Input | 4.5 Ohms | DC Resistance (DCR) | 4.5 Ohm Max |
| Current Rating (Max) | 230 mA | Resistance - Initial (Ri) (Min) | 4.5 Ohms |
| Current - Supply (Disable) (Max) | 0.23 A | ||
Mechanical
| Size | 11 mm W x 17 mm L x 16 mm H | Width | 11 mm |
| Packaging | Bulk | End - Size | Radial |
| Size - Body | 17 mm | Height (Max) | 16 mm |
| Mounting Type | Through Hole | Package / Case | Bulk |
| Size / Dimension | 0.669" L x 0.433" W (17.00mm x 11.00mm) | Termination Style | Radial |
Product Info
| Type | Leaded Common Mode Choke Coils for AC Lines | Series | TLF |
| Product Type | Common Mode Filters | Number of Lines | 2 |
Environmental
| Mechanical Life | Mouser 初 | Operating Temperature | -25°C ~ 105°C |
| Operating Temperature - Junction | - 25 C to + 105 C | ||
