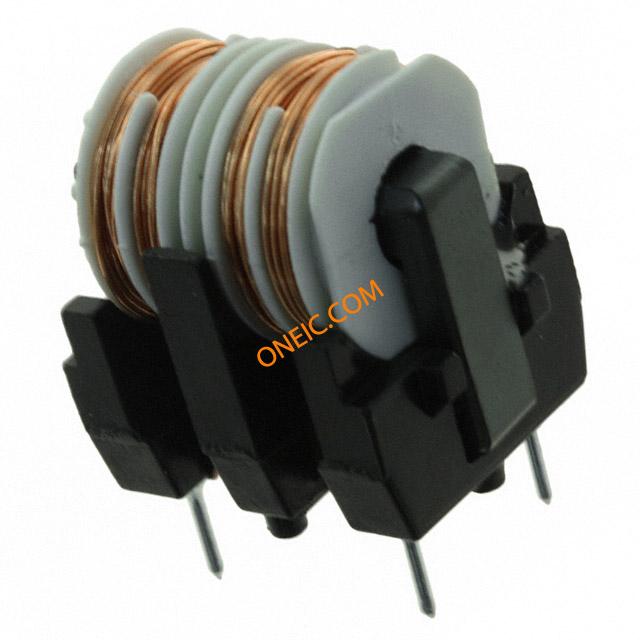

TLF14CB1030R7K1
| Manufacturer | |
| Description | COMMON MODE CHOKE COIL 10000UH BOX コモンモード フィルタ /チョーク COMMON MODE CHK COIL 10000uH CHOKE COMMON MODE 10000UH Common Mode Filters / Chokes COMMON MODE CHK COIL 10000uH |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | メーカ | Taiyo Yuden |
| Other Names | 587-2813 | Standard Package | 500 |
Compliance
| RoHS | RoHS 認証 | ||
Electrical
| Current | 700mA | Inductance | 10 mH |
| Filter Type | Power Line | Resistance - Input | 850 mOhms |
| DC Resistance (DCR) | 850 mOhm Max | Current Rating (Max) | 700 mA |
| Resistance - Initial (Ri) (Min) | 850 mOhms | Current - Supply (Disable) (Max) | 0.7 A |
Mechanical
| Size | 17 mm W x 22 mm L x 23 mm H | Width | 17 mm |
| Packaging | Bulk | End - Size | Radial |
| Size - Body | 22 mm | Height (Max) | 23 mm |
| Mounting Type | Through Hole | Package / Case | Bulk |
| Size / Dimension | 0.867" L x 0.669" W (22.00mm x 17.00mm) | Termination Style | Radial |
Product Info
| Type | Leaded Common Mode Choke Coils for AC Lines | Series | TLF |
| Product Type | Common Mode Filters | Number of Lines | 2 |
Environmental
| Operating Temperature | -25°C ~ 105°C | Operating Temperature - Junction | - 25 C to + 105 C |
