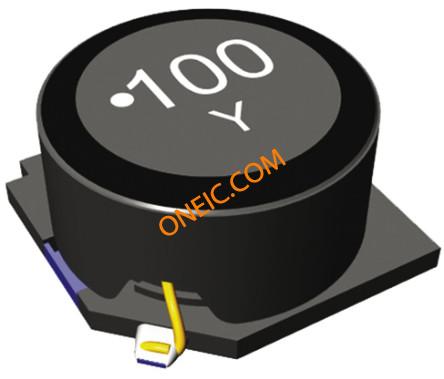

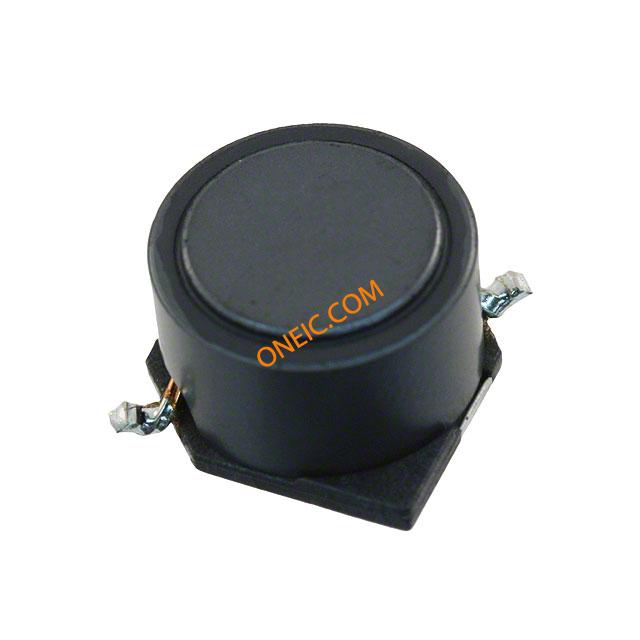

NS12575T470MN
| Manufacturer | |
| Description | Fixed Inductors INDCTR SMD HI CUR 47uH 20% INDUCTOR 47UH 2.95A 20% SMD Inductor SMD wirewound 47uH Inductor Power Shielded Wirewound 47uH 20% 100KHz 2.95A 61.8mOhm DCR T/R Ind Power Shielded Wirewound 47uH 20% 100KHz 2.95A T/R INDUCTOR, SHIELDED, 47UH, 3.76A, SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 587-2762-2 | Standard Package | 500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85045095 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Core Type | :Shielded | Tolerance | ±20% |
| Inductance | 47 uH | Range deg/s | :TAIYO YUDEN - NS Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 61.8 mOhm Max | Current Rating (Max) | 3.76 A |
| DC Resistance (DCR) (Max) | :0.0515ohm | Frequency - Self Resonant | 6.5 MHz |
| Current Saturation - Series | 3.76A | Resistance - Initial (Ri) (Min) | 0.0515 Ohms |
| Current - On State (It (RMS)) (Max) | :2.95A | ||
Mechanical
| Depth | 12.5mm | Width | 12.5 mm |
| Height | 7.5mm | Length | 12.5mm |
| Weight | 0 | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Shielded |
| Shield Type | Yes | Core Material | Ferrite |
| Mounting Type | Surface Mount | Package / Case | 7.5 mm |
| Material - Core | Ferrite | Length - Overall | 12.8 mm |
| Size / Dimension | 12.5 mm W x 12.5 mm L x 7.5 mm H | Termination Style | SMD/SMT |
| Height - Seated (Max) | 0.309" (7.85mm) | ||
Product Info
| Type | Power | Series | NS |
| Technology | Wirewound | Failure Rate | Not Required |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | - 40 C to + 125 C |
