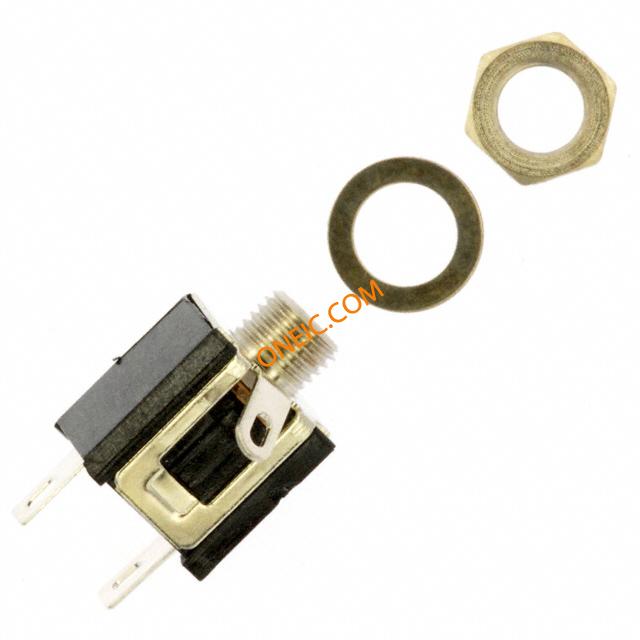

MDSL2A
| Manufacturer | |
| Description | Phone Connectors PHN JK 2 COND .101 Conn Audio F 2 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN JACK PHONE MINI 2POS SOCKET, 2.5MM JACK, 2POLE MICRO-D-JAX |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Tradename | Micro-Jax |
| Other Names | SC1043 | Subcategory | Connector Audio and Video |
| Product Category | Phone Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Signal Lines | Mono | Voltage Rating | 250 V |
| Voltage - Supply | 2.5 mm | Current Rating (Max) | 0.12 |
| Voltage - Input (Min) | 125VAC | Switch Function/Rating | Not Switched |
Mechanical
| Color | Black | Weight | 0.1 |
| Packaging | Bulk | Shielding | Unshielded |
| Termination | Solder Lug | Pin Diameter | :2.5mm |
| Housing Color | Black | Mounting Type | Panel Mount |
| Connector Type | Phone Jack | Contact Finish | Silver |
| Mounting Style | Chassis (Panel) | Material - Body | :- |
| Panel Thickness | :1.6mm | Contact Material | Copper Alloy |
| Housing Material | Plastic | Termination Style | Solder Lug |
| Number of Contacts | 2 | Contact Termination | :Solder |
| Color - Actuator/Cap | Silver | Pin Size - Below Flange | :2.5mm |
| Plug/Mating Plug Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | Contact Material - Plating | Nickel |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Audio | Gender | F |

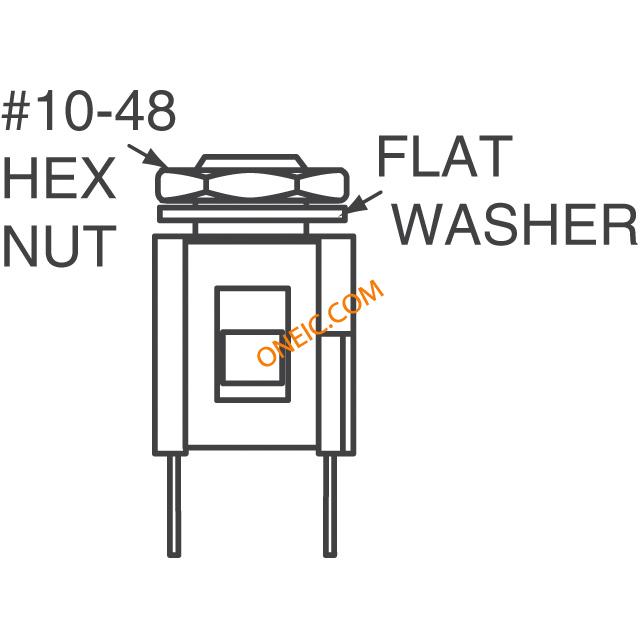

| Series | Micro-Jax | Features | Mounting Hardware, Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Single Switch |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | ||
Environmental
| Operating Temperature | -20°C ~ 65°C | ||
