L722RAS
| Manufacturer | |
| Description | Conn Power F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PWR JACK R/A 2MM SEALED 2mm Right Angle Panel Mount DC Power Socket 5A, 30V dc, Silver Plate, IP68 DC Power Connectors Pwr Jack Sealed IP68 2mm R/A lckg PC Mt POWER JACK, 2MM, IP68, R/A PCB SealedPowerJack,centerpin0.08,RightAnglePC,IP68/NEMA250 Switchcraft 直角 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68 |
| Category |
Business
| Product | Jacks | Other Names | SC1395 |
| Standard Pack | 100 | Product Category | DC Power Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 12VDC | Current Rating (Max) | 5A |
Mechanical
| Color | Silver | Length | 26.3mm |
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Unshielded | Termination | Solder |
| Pin Diameter | 2mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Jack |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Style | Solder | Number of Contacts | 3 |
| Contact Termination | :Through Hole Right Angle | Contact Finish Thickness | 2 mm |
| Plug/Mating Plug Diameter | 2.1mm ID, 5.5mm OD | Contact Material - Plating | Nickel |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Power | Gender | F |
| Series | Sealed Power Jacks | Features | IP68, Mounting Hardware, Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Single Switch, Normally Closed |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | ||
Environmental
| Seal Rating | IP68 | NEMA Frame Size | :IP68 |
Documents & Media
Similar Parts

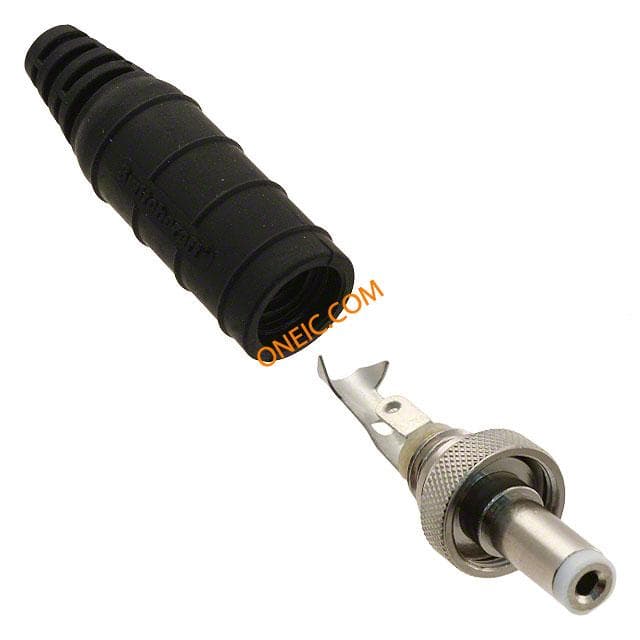

S761KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM 2mm Straight DC Power Plug Rated At 5A, 30V dc, Cable Mount, Length 57.1mm, Tin Plate, IP68 DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.150-0.175CableODRange,IP68/

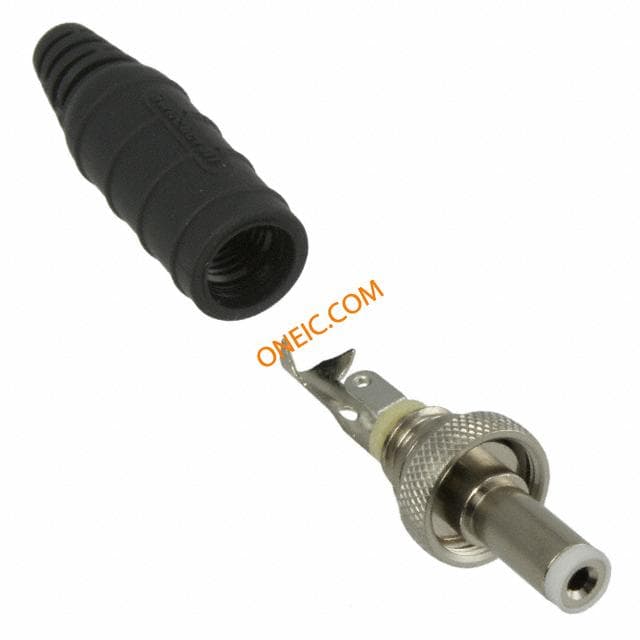

S761KS17
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 4.4-5.1MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.175-0.200CableODRange,IP68/ Switchcraft S762KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68
JCAP
Switchcraft
Connector Accessories Power Jack Sealed Cap Thermoplastic Elastomer Black POWER JACK SEAL CAP Switchcraft JCAP Series Jack Cover For Use With Power Connector JCAP DC Power Connectors Power Jack Seal Cap DUST CAP, FOR POWER JACK PowerJackSealCap Switchcraft 系列, 型 插孔盖, 使用于电源连接器

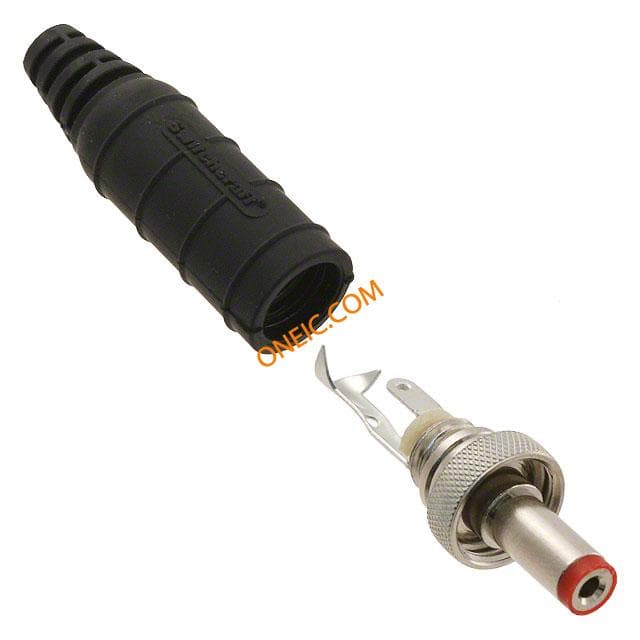

767KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.1MM DC Power Connectors Pwr Plug Sealed IP68 2.1mm lckg Red Tip POWER PLUG, 2.1MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.084,RedTip,0.150-0.175CableODRange,IP68/N Switchcraft 直向 直流适配器 , 电缆安装, 镀镍触芯

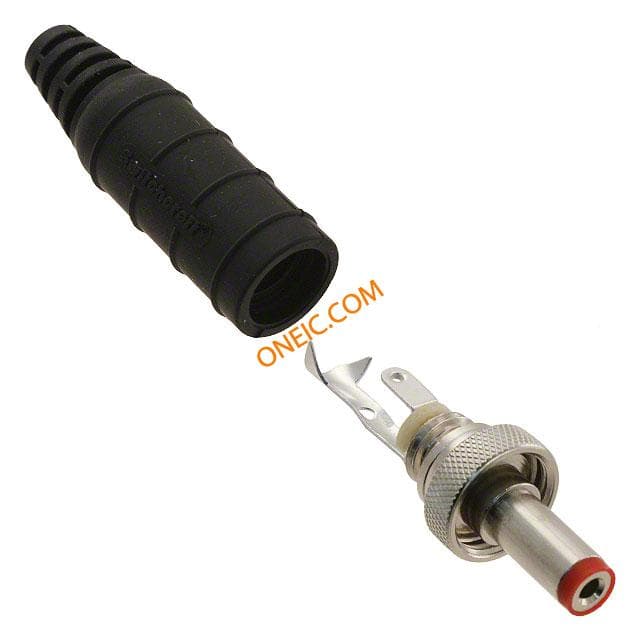

767KS17
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.1MM DC Power Connectors Pwr Plug Sealed IP68 2.1mm lckg Red Tip SEALED PWR PLG, 5A, 30VDC, 2.1MM PIN DIA SealedPowerPlug,centerpin0.084,RedTip,0.175-0.200CableODRange,IP68/N

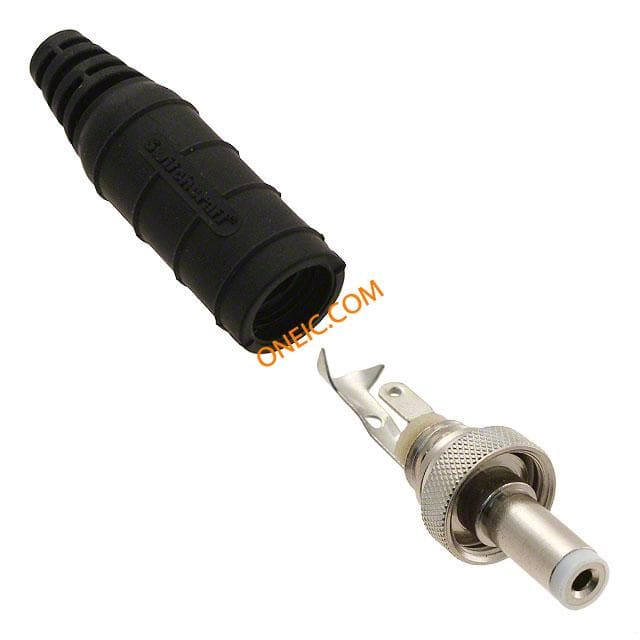

S761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 3.2-3.8MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.125-0.150CableODRange,IP68/

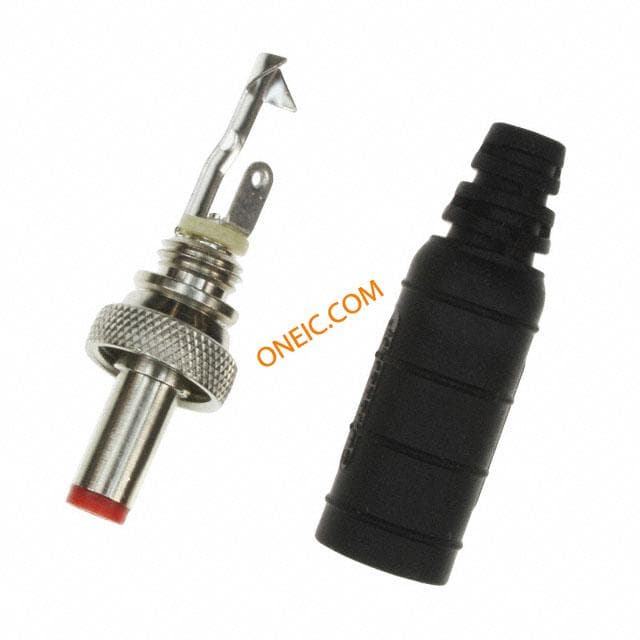

767KS12
