EN3P4FRAPCX
| Manufacturer | |
| Description | Standard Circular Connector 4P R/A PCB Conn Circular SKT 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Bulk CONN RCPT 4POS FEM R/A PANEL #20 EN3 R/A PCB PANEL MOUNT 4way socket EN3R/APCBPANELMOUNT4waysocket Switchcraft EN3 系列 4路 面板安装 直角 连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600 V ac | Current Rating (Max) | 5A |
Mechanical
| Depth | 31.73 | Outline | 20.62mm |
| Diameter | 20.62 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 20.62mm |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Contact Type | 4Signal |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Plastic |
| Connector Usage | Bayonet | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Rows | 焊接 |
| Termination Style | Crimp / Solder | 1st Contact Gender | SKT |
| Mating Orientation | Bayonet | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Material, Finish | Thermoplastic Polymer, Glass Fiber |
Product Info
| Type | Circular | Gender | PL |
| Series | EN3 | Product Type | Connectors |
Environmental
| Seal Rating | IP66, IP68 | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts
EN3PQCA
Switchcraft
Standard Circular Connector EN3 PANEL ADAPTER EN3 QUICK DISCONNECT EN3QUICKDISCONNECT
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft

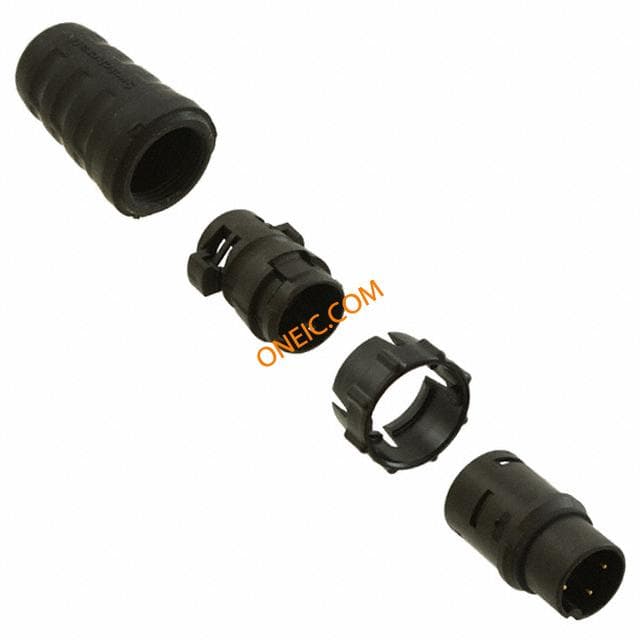

EN3C4MX
Switchcraft
Standard Circular Connector 4P MALE CORD TYPE Conn Mini Weathertight M 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port Bulk CONN PLUG 4POS MALE CORD #20 CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,4PIN
EN3C4MCX
Switchcraft
Standard Circular Connector 4 POS CORD PLUG Conn Mini Weathertight M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Bulk CONN PLUG 4POS MALE CORD #20 4PINCRIMPCORDCON
EN3C4MCKX
Switchcraft
Standard Circular Connector 4 PIN CRIMP CORD PLU Conn Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Kit CONN PLUG 4POS MALE CORD #20 4PINMALE,CRMP,CRD
EN3NUT
Switchcraft
Standard Circular Connector NUT FOR PANEL EN3 HARSH ENVIRONMENT HARDWARE-NUT CONN HARDWARE NUT FOR EN3 SERIES EN3HARDWARE-NUT

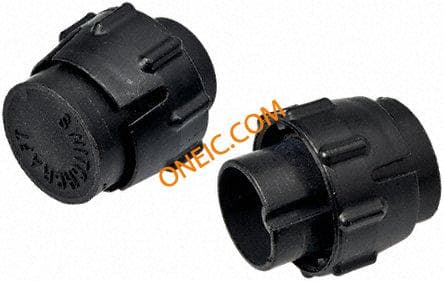

EN3IPCAP
