EN3L3M16X
| Manufacturer | |
| Description | Standard Circular Connector 3P INLINE CORD W/#16 Conn Circular M 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN RCPT 3POS MALE IN-LINE #16 IN-LINECONNECTOR,MALE,WEATHERTIGHT,#16CONTACTS,3PIN |
| Category |
Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 13A |
Mechanical
| Diameter | 18 | Packaging | Bulk |
| Cable Exit | Yes | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | 3Signal | Mounting Type | Cable Mount |
| Shell Plating | Gold over Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Contact Material | Copper Alloy |
| Housing Material | ThermoplasticRubber | Length - Overall | 57.6 |
| Primary Material | Sealed | Termination Style | Solder Cup |
| 1st Contact Gender | M | Mating Orientation | In-Line |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Circular | Gender | PL |
| Series | EN3 | Features | Cable Clamp |
| Manufacturer | EN3Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
Similar Parts
EN3C3F16KX
Switchcraft
Standard Circular Connector SOLDER CORD PLUG KIT CONN PLUG 3POS FEMALE CORD #16
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3C3F16CX
Switchcraft
Standard Circular Connector 3 PIN FEMALE CRIMP CONN PLUG 3POS FEMALE CORD #16

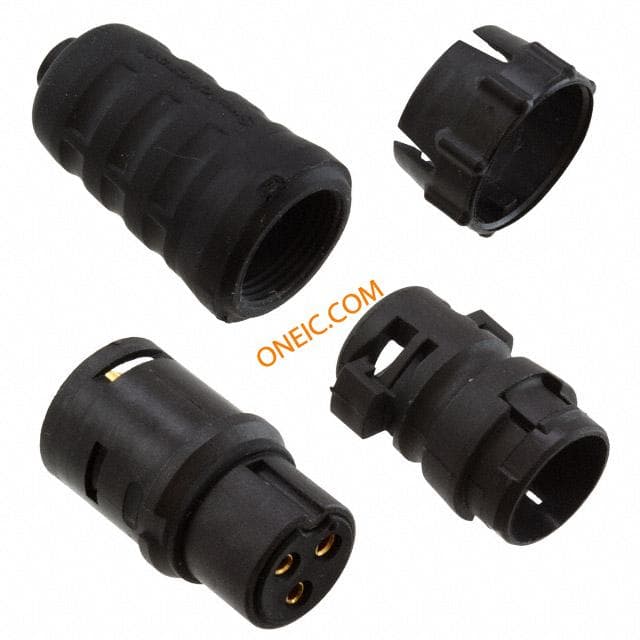

EN3C3F16X
