EN3C8FX
| Manufacturer | |
| Description | Standard Circular Connector 8P FEMALE CORD TYPE Conn Mini Weathertight F 8 POS Solder Cup ST Cable Mount 8 Terminal 1 Port Bulk CONN PLUG 8POS FEMALE CORD #20 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,8PIN |
| Category |
Business
| Tradename | EN3 | Other Names | SC259 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 6.5A |
Mechanical
| Diameter | 17.86 mm | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Form | 8Signal |
| Contact Type | 8Signal | Mounting Type | Cable Mount |
| Shell Plating | Gold over Nickel | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Cable |
| Contact Material | Copper Alloy | Housing Material | ThermoplasticRubber |
| Length - Overall | 39.83 mm | Primary Material | Sealed |
| Termination Style | Solder Cup | 1st Contact Gender | F |
| Number of Contacts | 8 | Number of Positions | 8 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Mini Weathertight | Series | EN3 |
| Features | Cable Clamp | Main Purpose | Cable Clamp |
| Manufacturer | EN3Series | Product Type | Connectors |
| RF Family/Standard | EN3 | Output Configuration | Free Hanging (In-Line) |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
Similar Parts
EN3L8MKX
Switchcraft
Standard Circular Connector EN3 INLINE 8PIN MLE. CONN RCPT 8POS MALE IN-LINE #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3L8MCX
Switchcraft
Standard Circular Connector EN3 INLINE 8 PIN MAL CONN RCPT 8POS MALE IN-LINE #20 Conn Mini Weathertight M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Bulk
EN3L8MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 8PIN MALE CONN RCPT 8POS MALE IN-LINE #20
EN3PH8M20X
Switchcraft
Standard Circular Connector 8 PIN PANEL MALE #20 CONN MALE HOUSING 8PIN #20

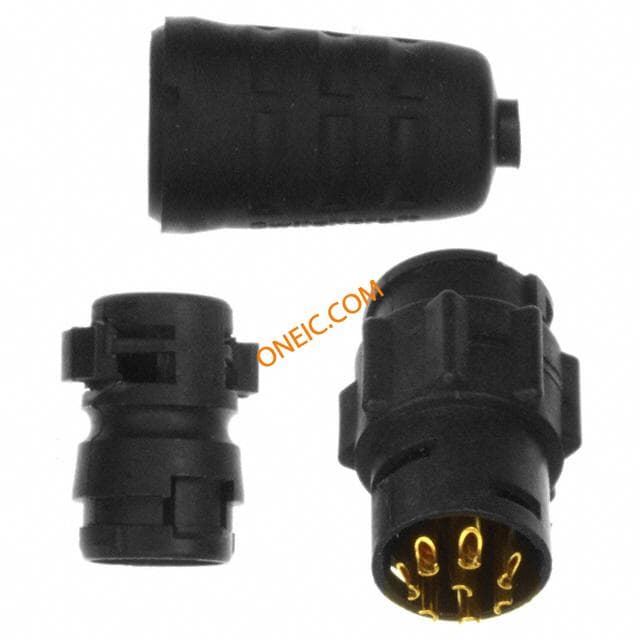

EN3L8MX
Switchcraft
Standard Circular Connector 8P MALE IN-LINE TYPE Conn Mini Weathertight M 8 POS Solder ST Cable Mount 8 Terminal 1 Port Bulk CONN RCPT 8POS MALE IN-LINE #20 IN-LINECONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,8PIN

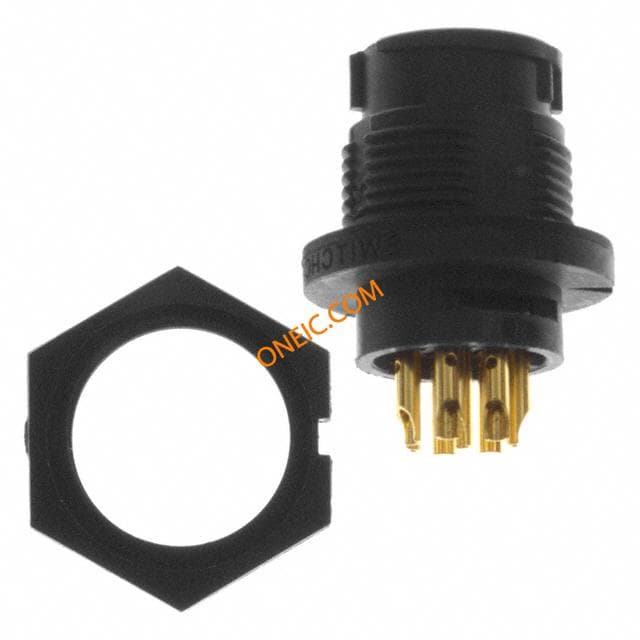

EN3P8MX
