Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 6.5A |
Mechanical
| Packaging | Bulk | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | 7Signal |
| Mounting Type | Cable Mount | Shell Plating | Gold over Nickel |
| Angle of Throw | Straight | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Material | ThermoplasticRubber | Primary Material | Sealed |
| Termination Style | Solder Cup | 1st Contact Gender | F |
| Number of Contacts | 7 | Number of Positions | 7 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Mini Weathertight | Gender | F |
| Series | EN3 | Features | Cable Clamp |
| Manufacturer | EN3Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
EN3P7MCKX
Switchcraft
$46.7840
Details
EN3CLAMPL
Switchcraft
$100.4360
Details
EN3PH7M20X
Switchcraft
$21.2976
Details
EN3CAPC
Switchcraft
$10.1184
Details
EN3P7MX
Switchcraft
$102.5611
Details
EN3BOOT
Switchcraft
$11.4337
Details
EN3P7MPX
Switchcraft
$118.4579
Details
EN3L7MX
Switchcraft
$62.3628
Details
EN3CLAMPX
Switchcraft
$44.9480
Details
EN3BOOTL
Switchcraft
$16.8932
Details
EN3P7MCX
Switchcraft
$66.6713
Details
EN3L7MCKX
Switchcraft
$34.8296
Details
EN3P7MKX
Switchcraft
$51.4080
Details
EN3L7MCX
Switchcraft
$34.0340
Details
EN3L7MKX
Switchcraft
$38.8076
Details

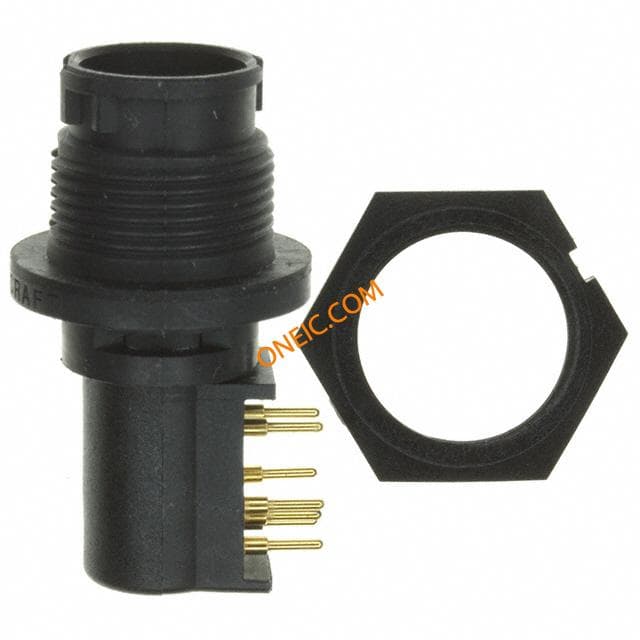

EN3P7MRAPCX
Switchcraft
$133.1936
Details

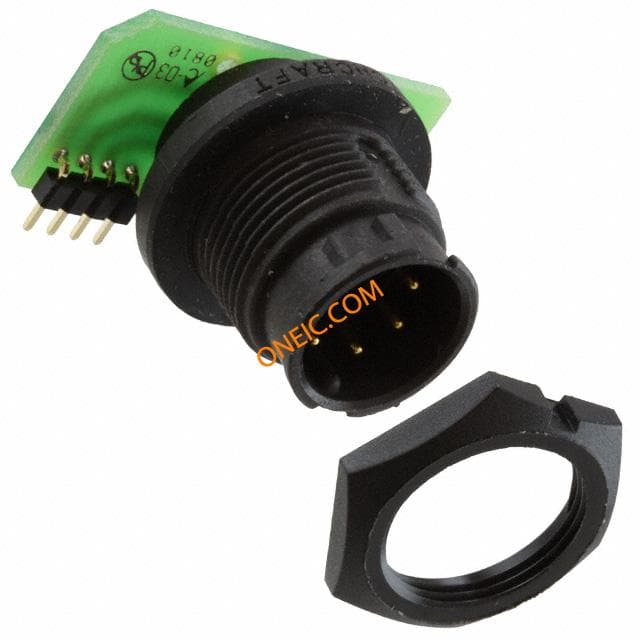

EN3P7MRAPCBW
Switchcraft Inc.
$64.4592
Details

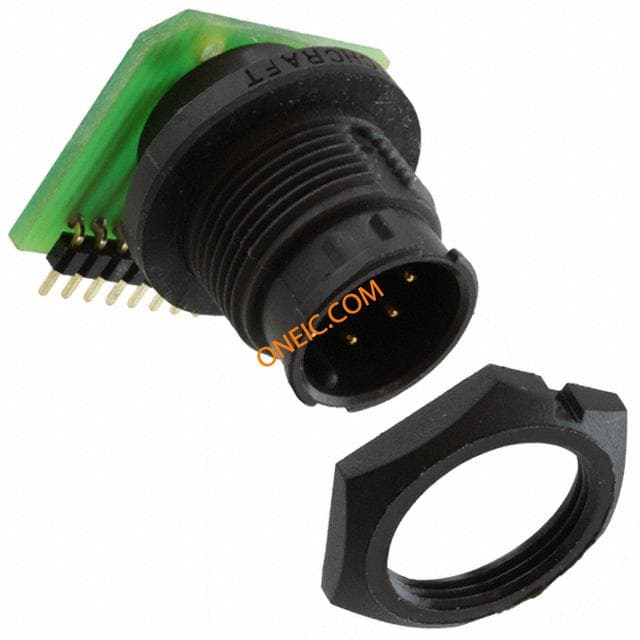

EN3P7MRAPCBN
