Business
| Tradename | EN3 | Other Names | SC257 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 7.5A |
Mechanical
| Diameter | 17.86 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Weight (g): | 7.56000 |
| Contact Type | 6Signal | Mounting Type | Cable Mount |
| Shell Plating | Gold over Nickel | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Contact Material | Copper Alloy |
| Housing Material | ThermoplasticRubber | Length - Overall | 39.83 |
| Primary Material | Sealed | Termination Style | Solder Cup |
| 1st Contact Gender | F | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Material, Finish | Thermoplastic Polymer, Glass Fiber |
Product Info
| Type | Mini Weathertight | Series | EN3 |
| Features | Cable Clamp | Manufacturer | EN3Series |
| Product Type | Connectors | Application Specifics | Commercial |
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
EN3L6MKX
Switchcraft
$48.1440
Details
EN3P6MKX
Switchcraft
$46.5800
Details
EN3L6MCKX
Switchcraft
$35.9720
Details
EN3CLAMPL
Switchcraft
$100.4360
Details
EN3P6MCKX
Switchcraft
$41.8880
Details
EN3PH6M20X
Switchcraft
$19.0060
Details

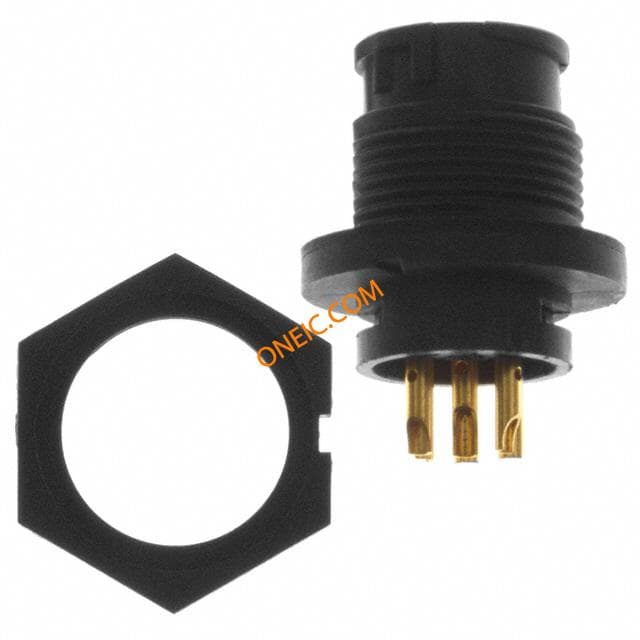

EN3P6MX
Switchcraft
$79.2556
Details

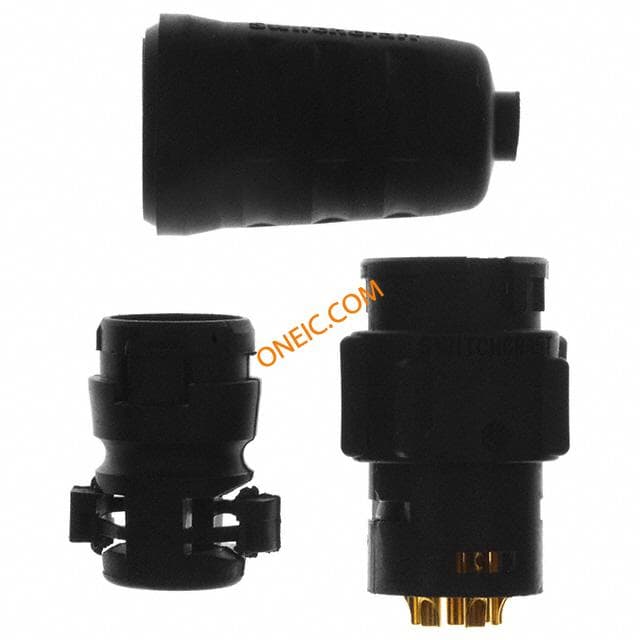

EN3L6MX
