EN3C6FCX
| Manufacturer | |
| Description | Standard Circular Connector 6 PIN CORD FEMALE Conn Circular F 6 POS Crimp ST Cable Mount 6 Terminal 1 Port Bulk CONN PLUG 6POS FEMALE CORD #20 EN3,6PIN,CORD,FEMAL |
| Category |
Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | No | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 7.5A | ||
Mechanical
| Diameter | 18 | Packaging | Bulk |
| Cable Exit | Yes | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Contact Type | 6Signal | Mounting Type | Cable Mount |
| Shell Plating | Gold over Nickel | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Bayonet Lock |
| Contact Material | Copper Alloy | Length - Overall | 55.9 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Circular | Gender | RCP |
| Series | EN3 | Features | Cable Clamp |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
Similar Parts
EN3L6MKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN MLE. CONN RCPT 6POS MALE IN-LINE #20
EN3P6MKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 6POS MALE PANEL #20
EN3L6MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN MALE CONN RCPT 6POS MALE IN-LINE #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3P6MCKX
Switchcraft
Standard Circular Connector 6 PIN CRIMP PANEL MT CONN RCPT 6POS MALE PANEL #20
EN3PH6M20X
Switchcraft
Standard Circular Connector 3 PIN PANEL #20 MALE CONN MALE HOUSING 6PIN #20
EN3CAPC
Switchcraft
Standard Circular Connector Connector Cap EN3 Connector Accessories Weather Tight Cap Thermoplastic Elastomer Black WEATHERTIGHT CABLE C EN3 DUST CAP, FOR IN-LINE CONNECTOR WEATHERTIGHT EN3C CAP WITH THERMOPLASTIC ELASTOMER, BLACK COLOR MATERIAL EN3DUSTCAP,FORIN-LINECONNECTOR
EN3P6MPX
Switchcraft
Standard Circular Connector EN3 6 PIN MALE PC PA Conn Mini Weathertight M 6 POS Solder Cup ST Thru-Hole 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 EN36-positionpanelconnector;#20goldplatedsolder-cupstylemalepins

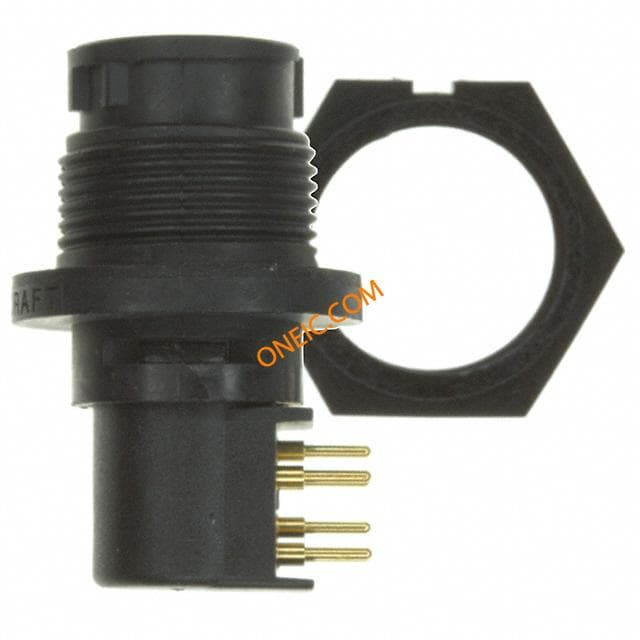

EN3P6MRAPCX
Switchcraft
Standard Circular Connector 6P R/A PANEL MT CONN RCPT 6POS MALE R/A PNL #20 6PINRAPANELCONN.
EN3CLAMPX
Switchcraft
Standard Circular Connector CLAMP FOR EN3 SERIES CONNECTORS CONN CLAMP FOR EN3 SERIES
EN3P6MCX
Switchcraft
Standard Circular Connector 6P MALE CRIMP PNL MT Conn Circular M 6 POS Crimp ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 6PINCRIMPPANELCO
EN3BOOTL
Switchcraft
Standard Circular Connector LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 Connector Accessories Boot Thermoplastic Rubber Black BOOT FOR EN3 LARGE OD Cable Boots LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 BOOT,LARGE,EN3,Ro
EN3P6M
Switchcraft
Conn Mini Weathertight M 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 Device connector EN3, 6-pin 6, EN3P6M, Switchcraft
EN3L6MC
Switchcraft
Conn Mini Weathertight M 6 POS Crimp ST Cable Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE IN-LINE #20
EN3L6M
Switchcraft
Conn Mini Weathertight M 6 POS Solder ST Cable Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE IN-LINE #20
EN3P6MRAPCBN
Switchcraft Inc.
CONN RCPT 6POS PNL MNT RA PIN Standard Circular Connector MALE 6 PIN RA PCB NARROW IP68 CONNECTOR, CIRCULAR, 6POS, PCB

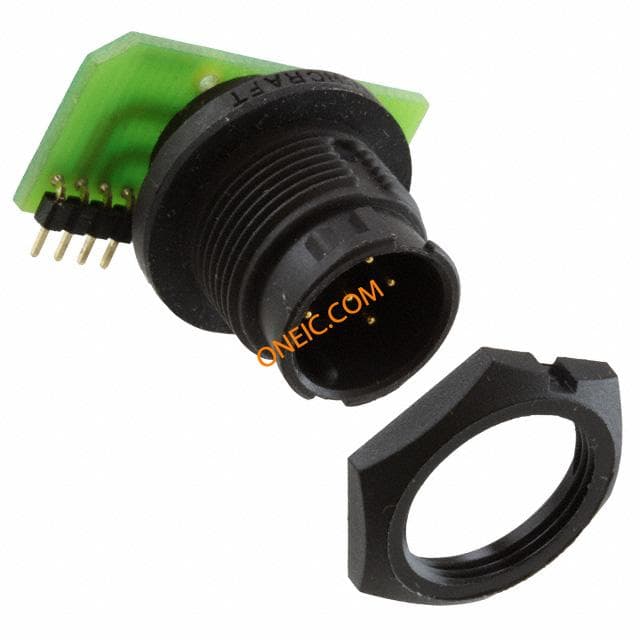

EN3P6MRAPCBW
