EN3C5FX
| Manufacturer | |
| Description | Standard Circular Connector 5P FEMALE CORD TYPE Conn Mini Weathertight F 5 POS Solder Cup ST Cable Mount 5 Terminal 1 Port Bulk CONN PLUG 5POS FEMALE CORD #20 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,5PIN |
| Category |
Business
| Tradename | EN3 | Other Names | SC255 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 7.5A |
Mechanical
| Diameter | 17.86 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | 5Signal |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Free Hanging |
| Contact Material | Copper Alloy | Housing Material | ThermoplasticRubber |
| Length - Overall | 39.83 | Primary Material | Sealed |
| Termination Style | Solder Cup | 1st Contact Gender | F |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Mini Weathertight | Series | EN3 |
| Features | Cable Clamp | Manufacturer | EN3Series |
| Product Type | Connectors | Application Specifics | Commercial |
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
Similar Parts
EN3L5MKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MLE CONN RCPT 5POS MALE IN-LINE #20
EN3L5MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MALE CONN RCPT 5POS MALE IN-LINE #20
EN3P5MCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP PANEL MO CONN RCPT 5POS MALE PANEL #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3P5MKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 5POS MALE PANEL #20
EN3PH5M20X
Switchcraft
Standard Circular Connector 5 PIN PANEL MALE #20 CONN MALE HOUSING 5PIN #20

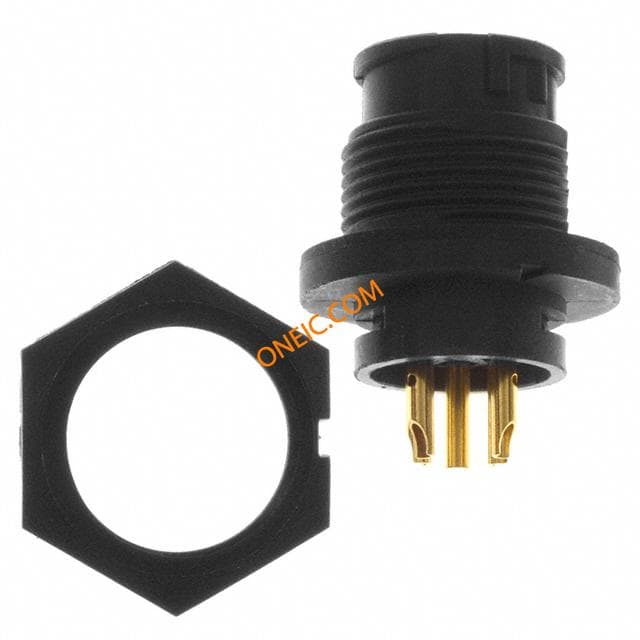

EN3P5MX
Switchcraft
Standard Circular Connector 5P MALE PANEL TYPE Conn Circular M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 PANELCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,5PIN
EN3P5MPX
Switchcraft
Standard Circular Connector EN3 5 PIN MALE PC PA Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 5PINPCBPANELCONN

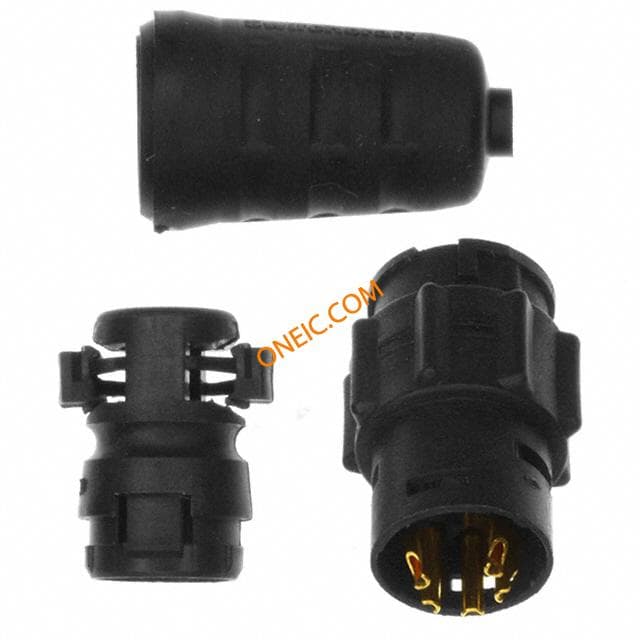

EN3L5MX
