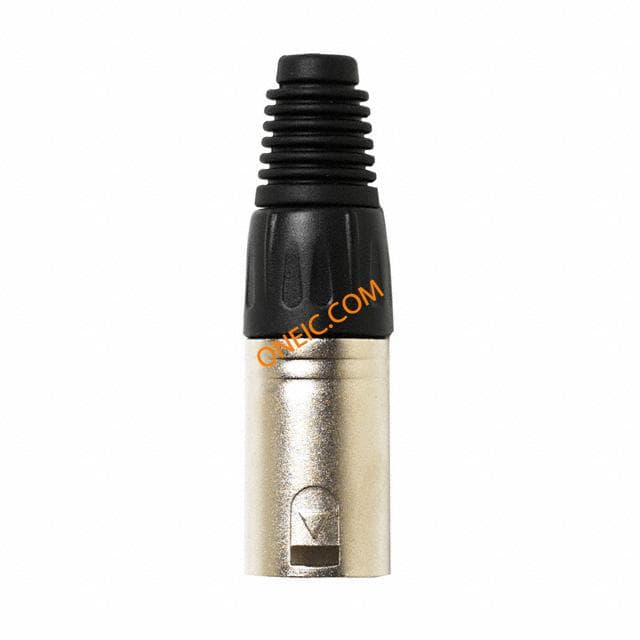

D5M
| Manufacturer | |
| Description | XLR Connectors 5 PIN Q-G RECEPTACLE Conn XLR Connector M 5 POS Solder ST Panel Mount 5 Terminal 1 Port CONN RCPT AUDIO 5POS MALE PNL MT XLR Receptacle; Receptacle; 5; Gold; 0.813 in.; 0.745 in. CONNECTOR, XLR, PLUG, 5POS XLRReceptacle;Receptacle;5;Gold;0.813in.;0.745in. |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Other Names | SC1028 |
| Subcategory | Connector Audio and Video | Product Category | XLR Connectors |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | ||
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Standard XLR |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Depth | 36.9 mm | Height | 36.32 mm |
| Weight | 0.018 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Chassis (Panel) |
| Material - Body | :Metal | Length - Overall | 27 mm |
| Termination Style | Solder | Number of Contacts | 5 |
| Contact Termination | :Solder | Number of Positions | 5 |
| Shell Size - Insert | XLR | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | XLR Connector | Gender | M |
| Series | D | Product Type | Connectors |
| Number of Ports | 1 | Leaded Process Compatible | :Yes |
