点击放大查看
AAA5MZ
| Manufacturer | |
| Description | XLR Connectors 5 PIN MALE CORD PLUG Conn XLR Connector M 5 POS ST Cable Mount 5 Terminal 1 Port CONN RCPT MALE 5PIN SILVER 5PINMALECORDPLUG Switchcraft 5路 直向 插头 电缆安装 XLR 连接器 , 镀银触点 |
| Category |
Business
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Standard XLR |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Color | 天然色 | Diameter | 19.69 |
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Latch Lock |
| Mounting Style | Cable | Contact Material | Copper Alloy |
| Housing Material | 锌合金 | Length - Overall | 66.14 |
| Termination Rows | 焊接 | Termination Style | Solder |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | XLR | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
Product Info
| Type | XLR Connector | Gender | M |
| Series | AAA | Features | Strain Relief |
| Product Type | Connectors | Number of Ports | 1 |
Documents & Media
Similar Parts

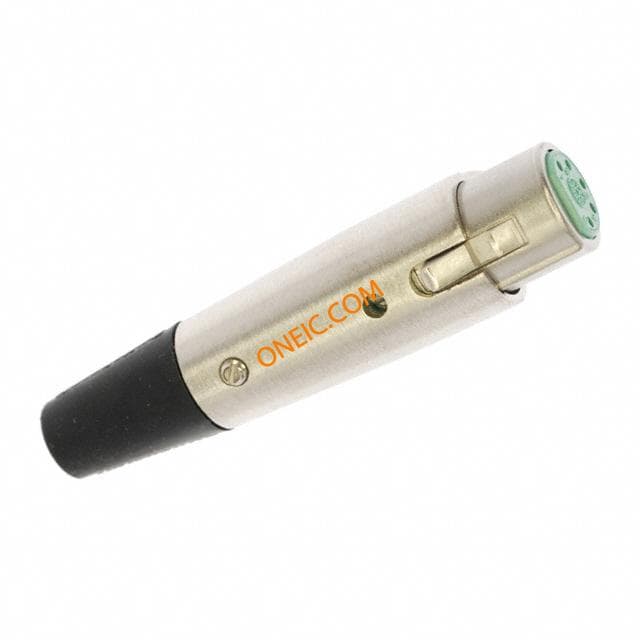

A5F
